Grundfos 92729426 - CR 64-5-2 B-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92729426

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92729426 - CR 64-5-2 B-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92729426 - CR 64-5-2 B-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and inline pumping needs.

With its robust construction and efficient design, the CR 64-5-2 B-G-A-E-HQQE ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is part of the renowned Grundfos Centrifugal Pumps series, known for their exceptional performance and energy efficiency.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715118767206
Actual impeller diameter 5.59 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.59 in
DOE Pump Energy Index CL 0.94
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 348.0 lb
IE efficiency IE3 91
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 146.3 ft
Maximum operating pressure 30 bar
Model B
Motor 213TC
Motor efficiency at 1/2 load 0.91
Motor efficiency at 3/4 load 0.917
Motor efficiency at full load 1 0.917
Motor standard NEMA
Motor type WEG
Net weight 331.0 lb
Number of poles 4
Number of reduced-diameter impellers 2
Power (P2) required by pump 7.5 kW
Power factor 1 0.83
Pressure rating for connection PN 40
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 1770 rpm
Pump version B
Pumped liquid Water
Rated current 24.8/12.4 A
Rated flow 170 US gpm
Rated head 123 ft
Rated power - P2 7.5 kW
Rated speed 1765 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 5
Standard NEMA
Starting current 6.4
Support bearing Graflon
Type WEG
Type of connection ANSI
Version B

Motor Curves

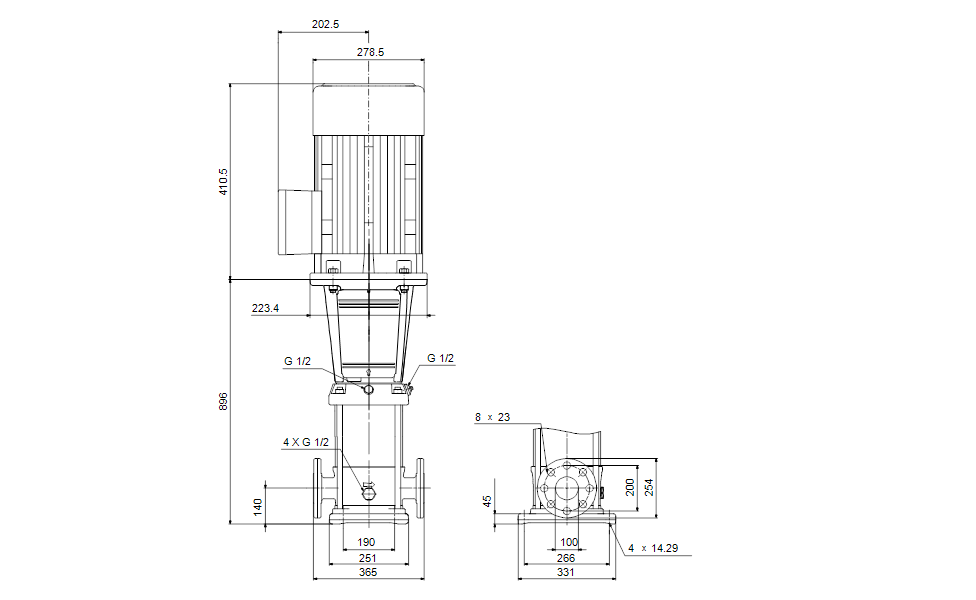

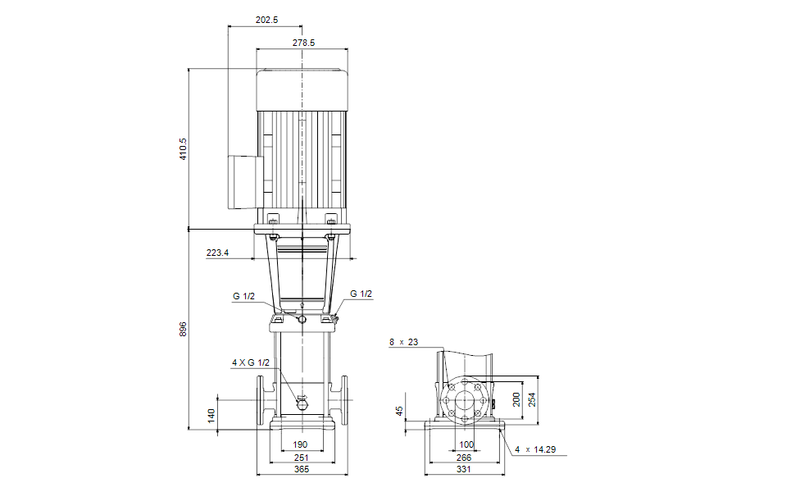

Dimensional Drawing

DWiring Diagram
