Grundfos 98382601 - CR 64-4-2 F-F-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98382601

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

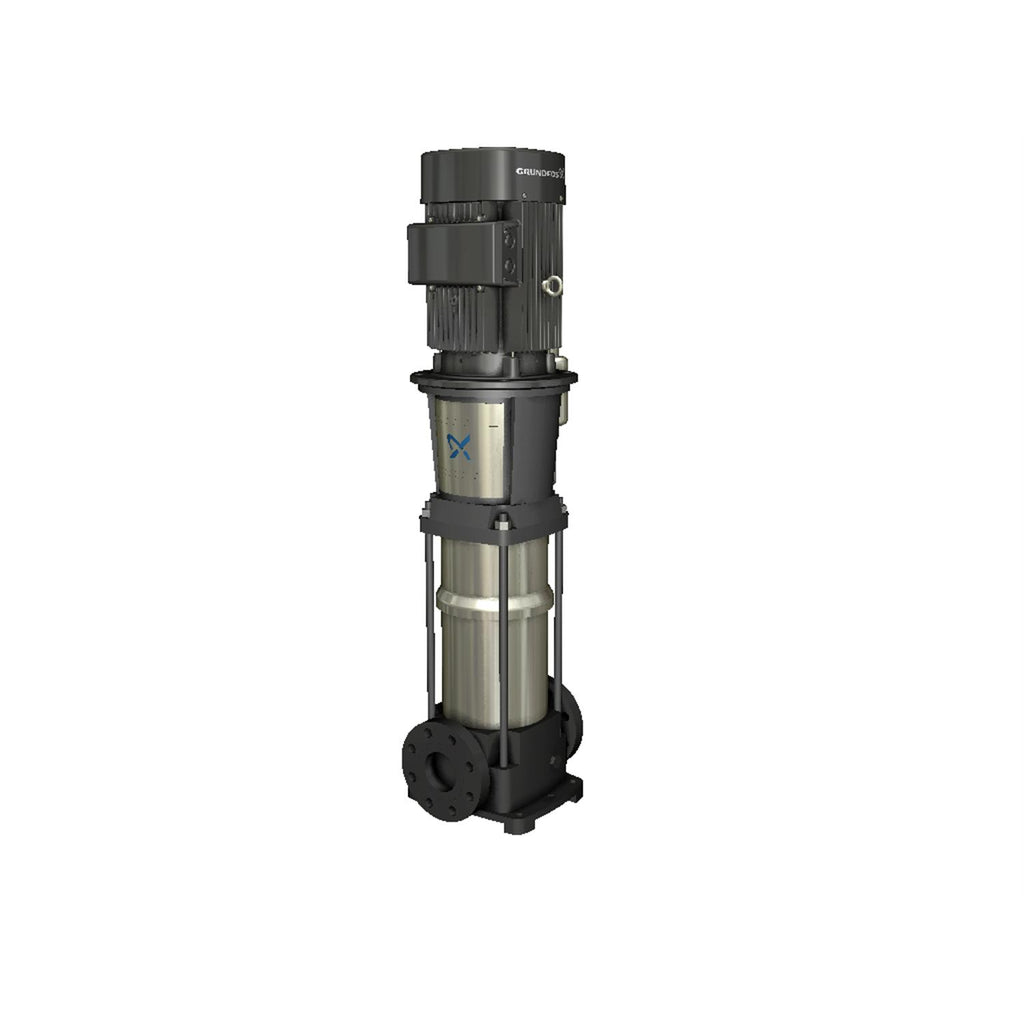

CR 64-4-2 F-F-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5711494040735
Approvals CE
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT130
Frequency converter NONE
Gross weight 158.0 kg
IE Efficiency class IE3
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -30 .. 150 °C
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 25 bar / 150 °C
Maximum ambient temperature 60 °C
Maximum head 24.7 m
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FT130
Motor efficiency at 1/2 load 84.5-83 %
Motor efficiency at 3/4 load 86-86 %
Motor efficiency at full load 1 87.7-87.7 %
Motor standard IEC
Motor type 100LC
Net weight 125.0 kg
Number of poles 4
Number of reduced-diameter impellers 2
Power (P2) required by pump 3 kW
Power factor 1 0.82-0.76
Pressure rating for connection PN 40
Pressure sensor N
Pump 3 kW
Pump speed on which pump data are based 1445 rpm
Pump version F
Pumped liquid Water
Rated current 6.9 A
Rated flow 32 m³/h
Rated head 18.9 m
Rated power - P2 3 kW
Rated speed 1440-1450 rpm
Rated voltage 3 x 380-415D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Size of inlet connection DN 100
Size of outlet connection DN 100
Stages 4
Standard IEC
Starting current 700-770 %
Support bearing Graflon
Type 100LC
Type of connection DIN
Version F

Motor Curves

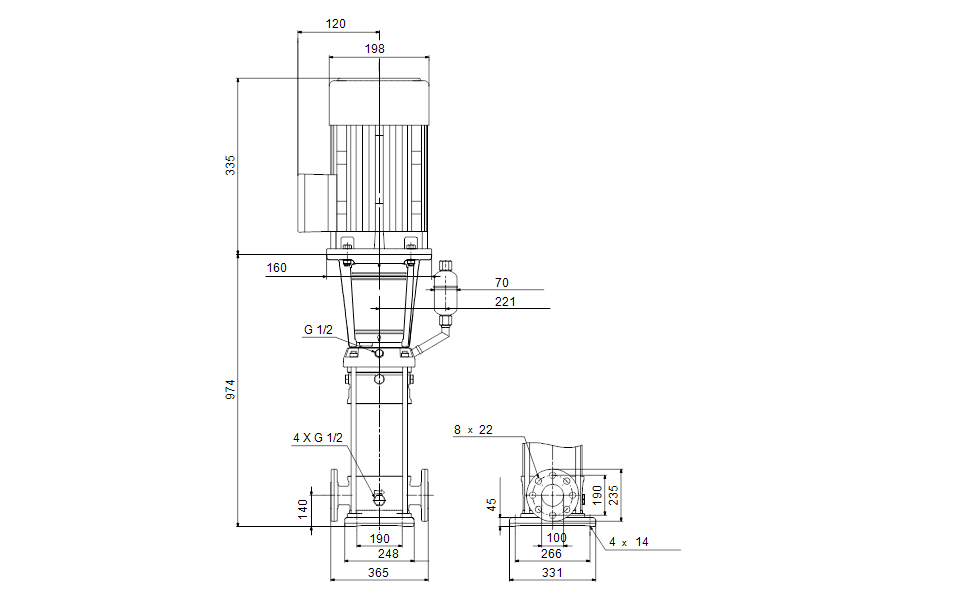

Dimensional Drawing

DWiring Diagram
