Grundfos 98099679 - CR 64-4-1 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98099679

Price:
Sale price$19,456.94
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98099679 - CR 64-4-1 A-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98099679 - CR 64-4-1 A-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer, boosting, and circulation tasks.

With its robust construction and advanced design, the CR 64-4-1 A-G-A-E-HQQE model ensures optimal flow rates and energy efficiency. This pump is part of the renowned Grundfos CR series, known for its versatility and durability in demanding environments.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710629013705
Actual impeller diameter 5.59 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Diameter 5.59 in
DOE Pump Energy Index CL 0.94
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 197.0 lb
Impeller Stainless steel
Impellers 1
Liquid temperature range -22 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum head 129.6 ft
Maximum operating pressure 30 bar
Model B
Motor 213TC
Motor standard NEMA
Net weight 179.0 lb
Number of reduced-diameter impellers 1
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 1770 rpm
Pump version A
Rated flow 170 US gpm
Rated head 101.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 4
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version A

Motor Curves

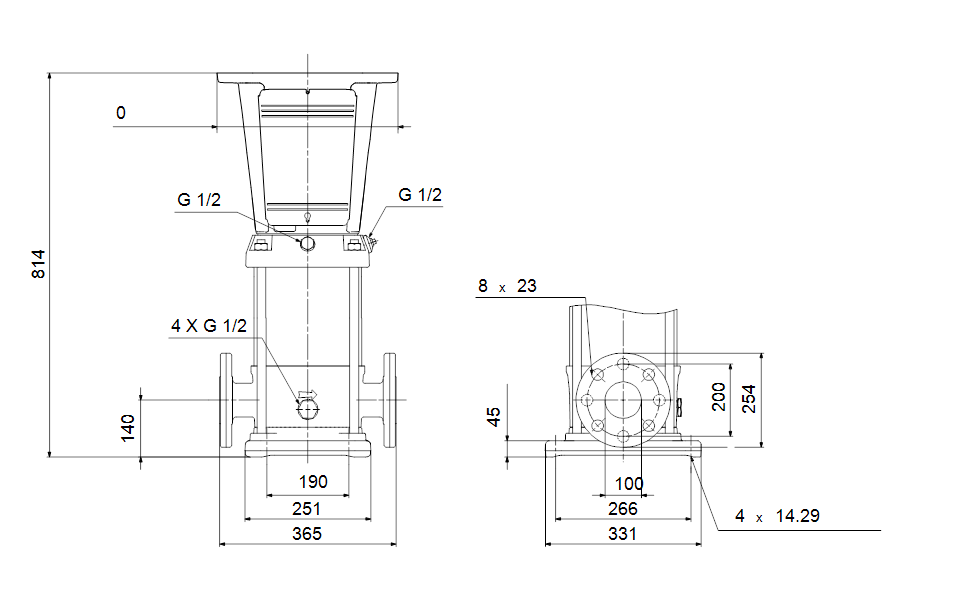

Dimensional Drawing
