Grundfos 97681701 - CR 64-4-1 H-G60-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $7,490.86
GRUNDFOSSKU: 97681701

Price:
Sale price$10,011.14 Regular price$17,502.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97681701 - CR 64-4-1 H-G60-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance and longevity. It is categorized under Grundfos Centrifugal Pumps, specifically within the Multi-Stage and Horizontal Multistage types. The CR 64-4-1 H-G60-A-V-HQQV is compatible with various systems, but it is essential to verify the exact part number or SKU to ensure a perfect match for your application.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have any questions or need assistance in finding the right pump for your needs, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We are here to help you navigate through our extensive inventory and find the perfect solution for your pumping requirements.

For optimal performance, always check your current pump for the exact part number or SKU that matches the Grundfos 97681701. If you encounter any difficulties, our team is ready to assist you in locating the right item.

Approvals on nameplate CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G60
Connection PN 40
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 380.0 lb
Impeller Stainless steel
Impellers 1
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 502.6 ft
Maximum operating pressure 435.11 psi
Model B
Motor 324TC
Motor standard NEMA
n rpm 3550rpm
Net weight 220.0 lb
Number of reduced-diameter impellers 1
Pressure rating for connection PN 40
Pressure sensor N
Pump Y
Pump version H
Rated flow 337 US gpm
Rated head 386.8 ft
Rubber V
Sales region USA
Shaft Product name:CR 64-4-1 H-G60-A-V-HQQV
Shaft seal HQQV
Stages 4
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

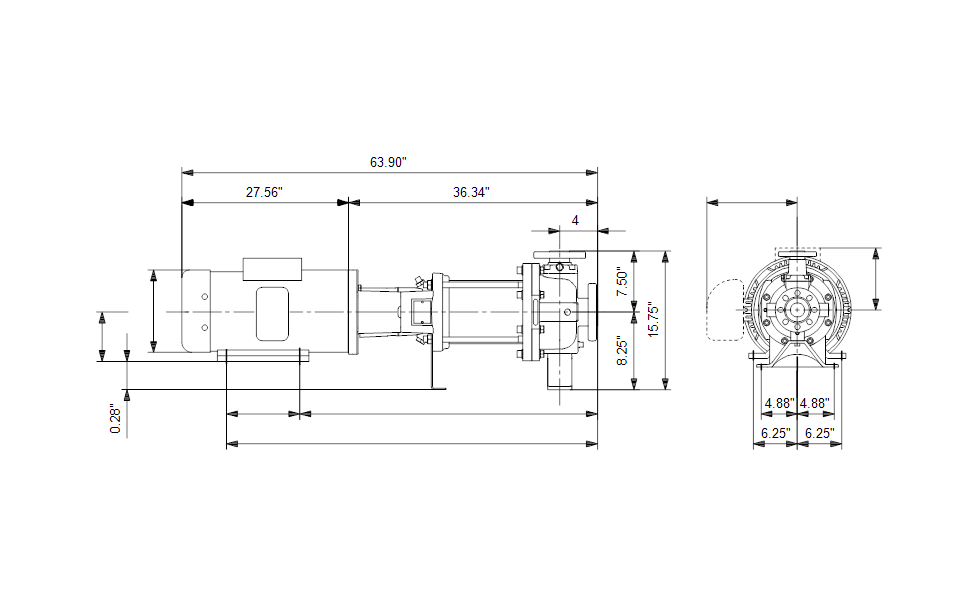

Dimensional Drawing
