Grundfos 92750315 - CR 64-3 P-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92750315

Price:
Sale price$17,738.89
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92750315 - CR 64-3 P-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CR 64-3 P-G-A-E-HQQE model excels in delivering consistent performance across various operational conditions. This pump is particularly suited for applications requiring a reliable and durable solution, ensuring optimal fluid transfer and management.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your specific application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before making a purchase, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715119072972
Actual impeller diameter 5.59 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 5.59 in
DOE Pump Energy Index CL 0.93
Flange rating inlet 150 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 190.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -22 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 428.8 ft
Maximum operating pressure 16 bar
Model B
Motor 284TC
Motor standard NEMA
Net weight 172.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3525 rpm
Pump version P
Rated flow 339 US gpm
Rated head 324.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 3
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version P

Motor Curves

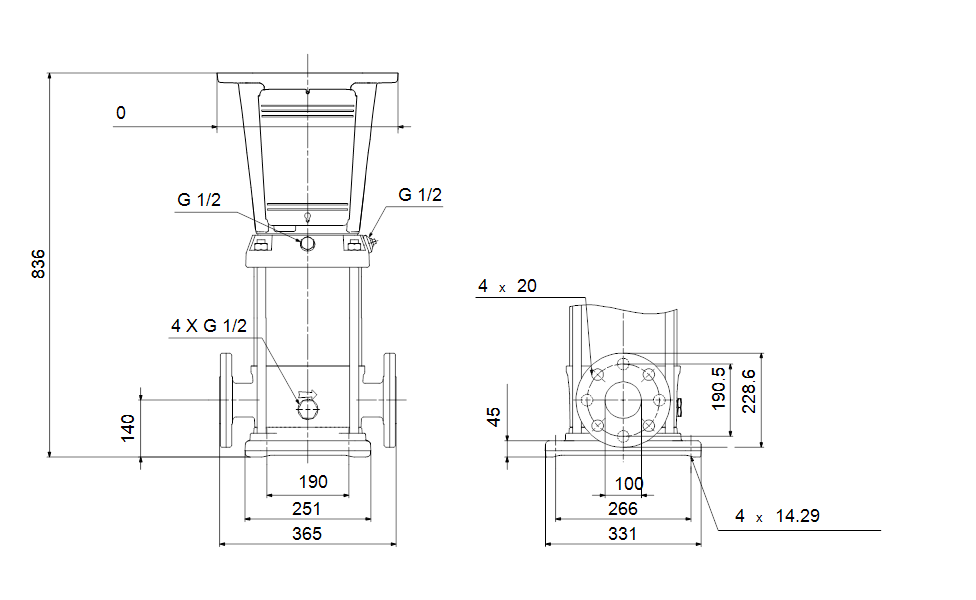

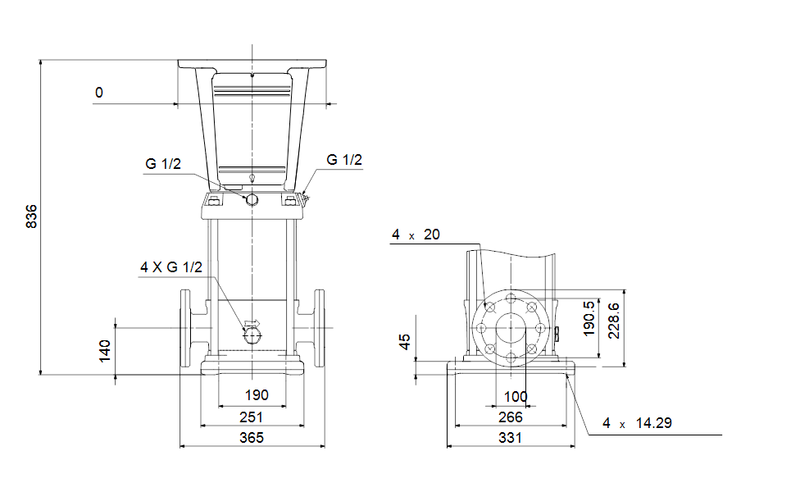

Dimensional Drawing
