Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CR 64-2 A-F-A-E-HQQE · Vertical Multistage Centrifugal Pump
CR30HP220-277D/380-480YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 98508876 (CR 64-2 A-F-A-E-HQQE) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 339US gpm at 212.6ft. Rated 220-277D/380-480YV, 3.0-Phase, 60 Hz.

Power
30HP
Voltage
220-277D/380-480YV
Phase
3.0-Phase
Max Flow
339US gpm
Max Head
212.6ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 64-2 A-F-A-E-HQQE
Series: CR
Model Code: CR 64-2 A-F-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Flange Rating: PN 16
Technical Specifications
Model Number 98508876
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Power 30HP
Voltage 220-277D/380-480YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3520-3560rpm
Pump Speed 3556rpm
Full Load Current 69,5-56,5/40,0-32,5A
Motor Type 180BA
Motor Protection PTC
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 91.7-91.7%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 339US gpm
Nominal Head 212.6ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 140°F
Inlet Connection DN 100
Outlet Connection DN 100
Pipe Pressure Rating PN 16
Pipe Standard DIN
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQE
Approvals / Certifications CE, EAC, UKCA, SEPRO
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 220-277D/380-480YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 64-2 A-F-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711496325663
Actual impeller diameter 5.59 in
Approvals EAC
Approvals for drinking water WRAS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.59 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 518.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 290.4 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF300
Motor efficiency at 1/2 load 94.4-93.9 %
Motor efficiency at 3/4 load 93.5-94.4 %
Motor efficiency at full load 1 91.7-91.7 %
Motor standard IEC
Motor type 180BA
Net weight 445.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 22 kW
Power factor 1 0.91-0.91
Pressure rating for connection PN 16
Pressure sensor N
Pump 22 kW
Pump speed on which pump data are based 3556 rpm
Pump version A
Pumped liquid Water
Rated current 69
Rated flow 339 US gpm
Rated head 212.6 ft
Rated power - P2 22 kW
Rated speed 3520-3560 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 100
Size of outlet connection DN 100
Stages 2
Standard IEC
Starting current 650-1040 %
Support bearing Graflon
Type 180BA
Type of connection DIN
Version A

Motor Curves

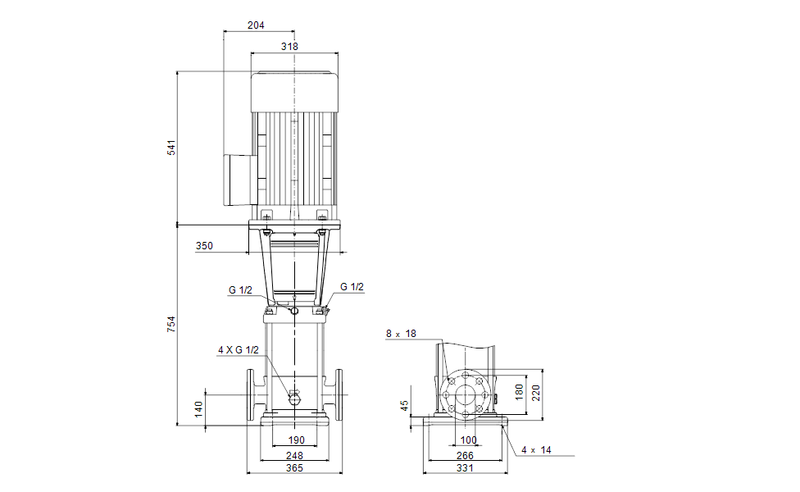

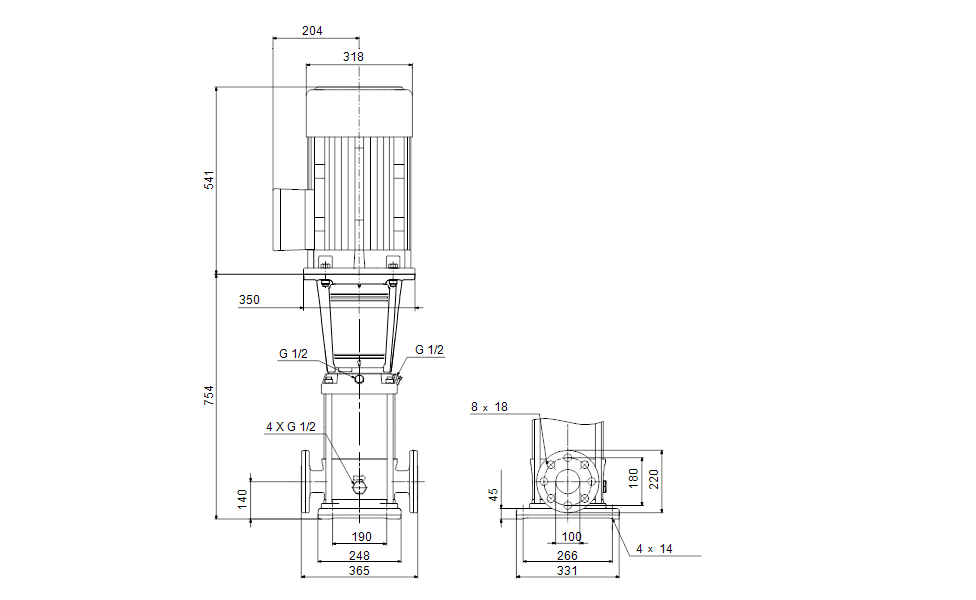

Dimensional Drawing

DWiring Diagram
