Grundfos 96123686 - CR 64-2 A-F-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96123686

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

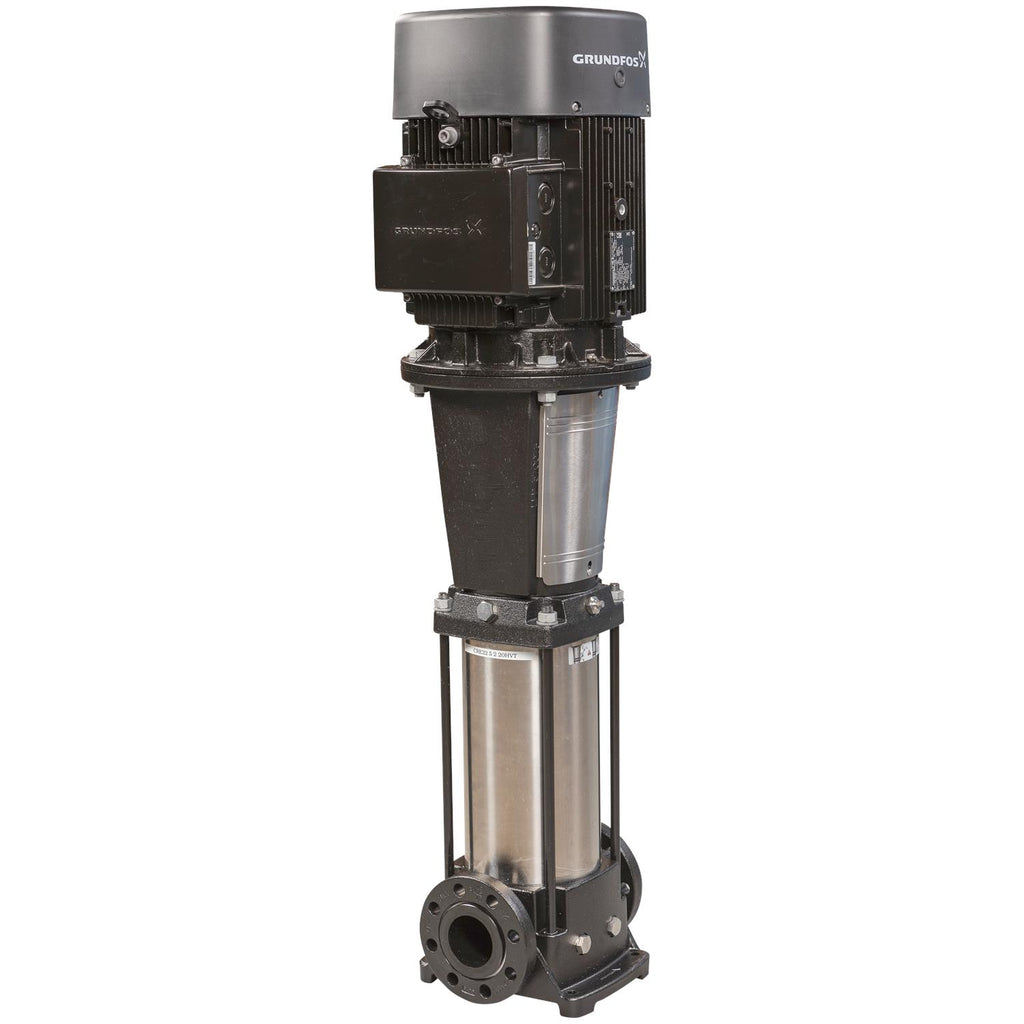

CR 64-2 A-F-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700396699066
Applications Industrial applications
Approvals CE
Approvals for drinking water WRAS
Bearing 1 SIC
Bearing 2 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 518.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 290.4 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF300
Motor efficiency at 1/2 load 94.4-93.9 %
Motor efficiency at 3/4 load 93.5-94.4 %
Motor efficiency at full load 1 91.7-91.7 %
Motor standard IEC
Motor type 180MB
Net weight 445.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 22 kW
Power factor 1 0.91-0.91
Pressure rating for connection PN 16
Product family CR 64
Pump 22 kW
Pump speed on which pump data are based 3556 rpm
Pump version A
Pumped liquid Water
Rated current 40
Rated flow 339 US gpm
Rated head 212.6 ft
Rated power - P2 22 kW
Rated speed 3520-3560 rpm
Rated voltage 3 x 380-480D/660-690Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 100
Size of outlet connection DN 100
Stages 2
Standard IEC
Starting current 650-1040 %
Support bearing Graflon
Terminal box position 6
Type 180MB
Type of connection DIN
Version A

Motor Curves

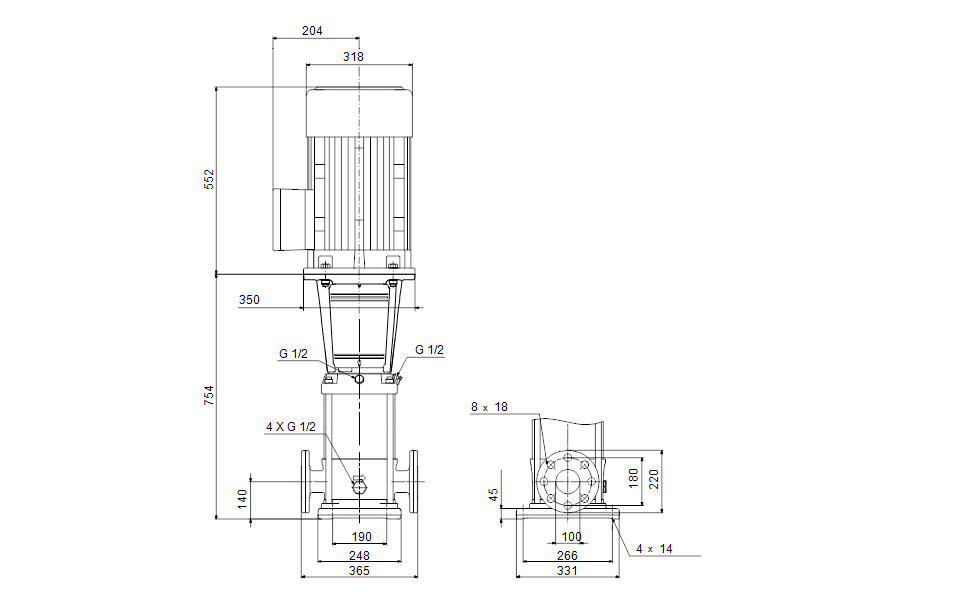

Dimensional Drawing
