Grundfos 97681777 - CR 64-1 H-G44-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $3,623.02
GRUNDFOSSKU: 97681777

Price:
Sale price$4,841.98 Regular price$8,465.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97681777 - CR 64-1 H-G44-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

This model is part of the CR series, known for its robust construction and versatility. It is suitable for both horizontal and vertical installations, ensuring flexibility in your setup. The CR 64-1 H-G44-A-V-HQQV is specifically designed to meet the demands of modern industrial environments, providing consistent performance across a range of applications.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and discover the perfect solution for your needs.

Approvals on nameplate CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G44
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 366.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 147 ft
Maximum operating pressure 232.06 psi
Model B
Motor 254TC
Motor standard NEMA
n rpm 3444rpm
Net weight 205.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 337 US gpm
Rated head 100.4 ft
Rubber V
Sales region USA
Shaft Product name:CR 64-1 H-G44-A-V-HQQV
Shaft seal HQQV
Stages 1
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

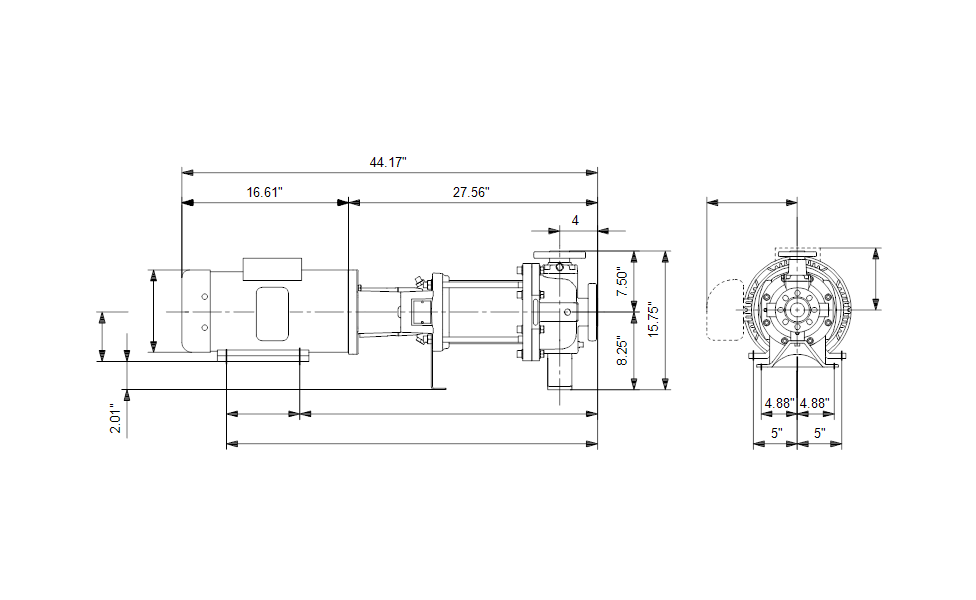

Dimensional Drawing
