Grundfos 97681728 - CR 64-1-1 H-G70-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $3,526.72
GRUNDFOSSKU: 97681728

Price:
Sale price$4,713.28 Regular price$8,240.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97681728 - CR 64-1-1 H-G70-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

This model is part of the CR series, known for its robust construction and versatility. It is categorized under centrifugal pumps, specifically designed for horizontal multistage applications. The CR 64-1-1 H-G70-A-E-HQQE is suitable for a wide range of uses, including water supply, irrigation, and industrial processes.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G70
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 362.0 lb
Impeller Stainless steel
Impellers 1
Liquid max temp 248°F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Material code A
Maximum head 101.4 ft
Maximum operating pressure 232.06 psi
Model B
Motor 213TC
Motor standard NEMA
n rpm 3467rpm
Net weight 201.0 lb
Number of reduced-diameter impellers 1
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 337 US gpm
Rated head 69.23 ft
Rubber E
Sales region USA
Shaft Product name:CR 64-1-1 H-G70-A-E-HQQE
Shaft seal HQQE
Stages 1
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

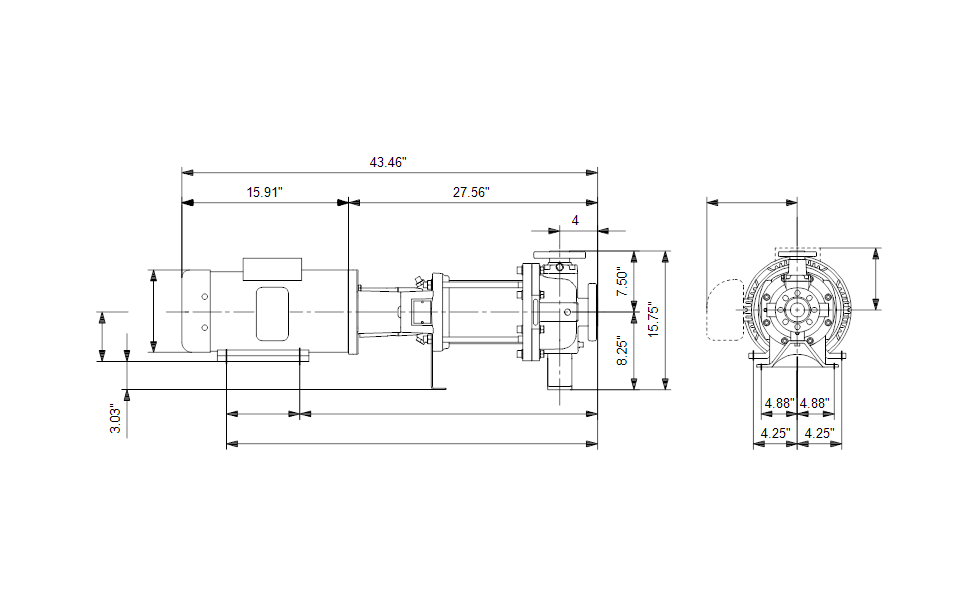

Dimensional Drawing
