Grundfos 98331751 - CR 5-7 A-A-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

This item ships free!
GRUNDFOSSKU: 98331751

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CR 5-7 A-A-A-E-HQQE · Vertical Multistage Centrifugal Pump
CR3HP230-277D/400-480YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 98331751 (CR 5-7 A-A-A-E-HQQE) is a Vertical Multistage Centrifugal Pump. Cast iron head and base, stainless steel wetted parts. Used in water supply, pressure boosting, HVAC, and industrial liquid transfer. Nominal performance: 30.4US gpm at 176.8ft. Rated 230-277D/400-480YV, 3.0-Phase, 60 Hz.

Power
3HP
Voltage
230-277D/400-480YV
Phase
3.0-Phase
Max Flow
30.4US gpm
Max Head
176.8ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Vertical Multistage Design

Multiple stages in series deliver high head at compact footprint. CR handles up to 60 bar and flow ranges from 0.5 to 900 m³/h across the series range.

Stainless Steel Wetted Parts

All parts in contact with the pumped fluid are stainless steel — impeller, shaft, chamber. Cast iron is used only for the head and base which never contact the fluid.

QuickTight Connection System

No special tools needed for coupling. Integrated coupling design reduces installation and service time.

Wide Configuration Range

Available in 60+ frame sizes and 16 impeller variants. CR can be configured for almost any pressure/flow combination in commercial and industrial water systems.

Authorized Grundfos Distributor

PumpStop supplies genuine Grundfos CR pumps with full manufacturer warranty and factory-trained technical support.

Contact PumpStop for Sizing

The CR family covers a wide operating range. Contact PumpStop to confirm the correct model, voltage, and frequency for your system.

Model Information — CR 5-7 A-A-A-E-HQQE
Series: CR
Model Code: CR 5-7 A-A-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Cast iron
Shaft Seal: HQQE
Flange Rating: PN 16
Technical Specifications
Model Number 98331751
Product Series CR
Series Description Vertical Multistage Centrifugal Pump
Power 3HP
Voltage 230-277D/400-480YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3480-3530rpm
Pump Speed 3501rpm
Full Load Current 7,50-6,95/4,30-4,00A
Motor Type 90HA
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 86.5-86.5%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 30.4US gpm
Nominal Head 176.8ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 140°F
Inlet Connection 1 1/4inch
Outlet Connection 1 1/4inch
Pipe Pressure Rating PN 16
Pipe Standard Oval / Rp
Impeller Material Stainless steel
Housing Material Cast iron
Shaft Seal HQQE
Approvals / Certifications CE, EAC, UKCA, SEPRO, RCM
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 230-277D/400-480YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CR pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CR Series
✓ Product Data Sheet — CR 5-7 A-A-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711493137672
Density 62.29 lb/ft³
Gross weight 88.3 lb
Liquid temperature range -4 .. 248 °F
Material Pricing Group 30
Max pressure at stated temp 232 psi / 250 °F
Max. capacity 2 ,
Maximum ambient temperature 140 °F
Maximum head 242.1 ft
Net weight 79.3 lb
Rated flow 30.4 US gpm
Rated head 176.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F

Motor Curves

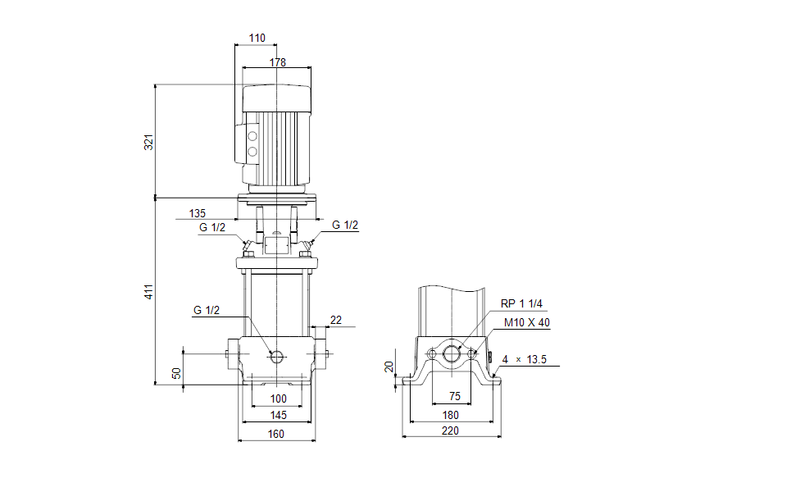

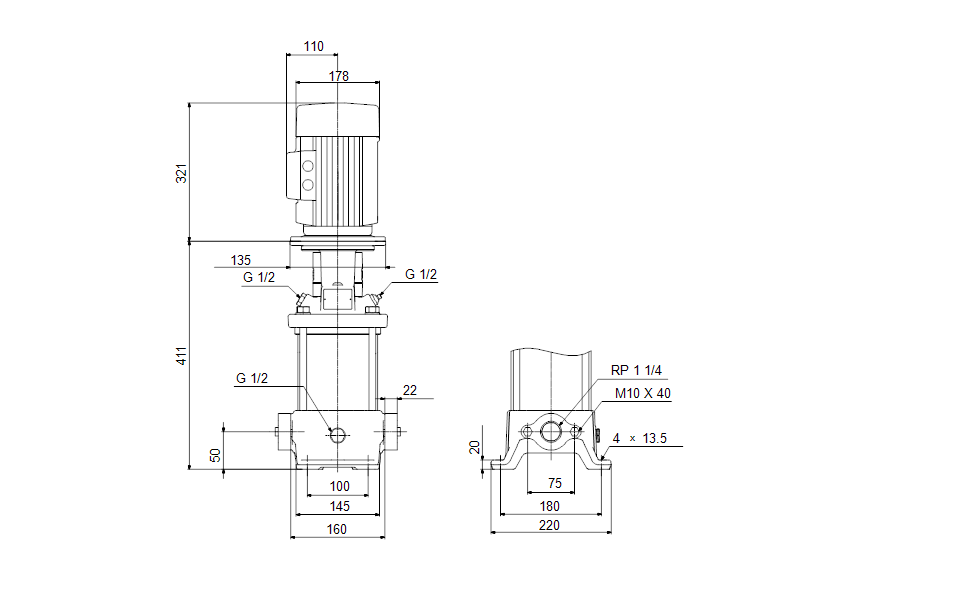

Dimensional Drawing

DWiring Diagram
