Grundfos 99493632 - CR 5-5 K-A-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99493632

Price:
Sale price$5,050.00
or Call for most up to date lead times. (781) 281-8905

Description

CR 5-5 K-A-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713830001738
Actual impeller diameter 2.88 in
Approvals EAC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 2.88 in
DOE Pump Energy Index CL 0.94
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT115
Frequency converter NONE
Gross weight 74.6 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 160.4 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT115
Motor efficiency at 1/2 load 87.1-83.7 %
Motor efficiency at 3/4 load 87.5-86.3 %
Motor efficiency at full load 1 85.5-85.5 %
Motor standard IEC
Motor type 90GB
Net weight 68.3 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.85-0.75
Pressure rating for connection PN 16
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3501 rpm
Pump version K
Pumped liquid Water
Rated current 5
Rated flow 30.4 US gpm
Rated head 114.5 ft
Rated power - P2 1.5 kW
Rated speed 3480-3530 rpm
Rated voltage 3 x 230-277D/400-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 5
Standard IEC
Starting current 780-980 %
Type 90GB
Type of connection Oval / Rp
Version K

Motor Curves

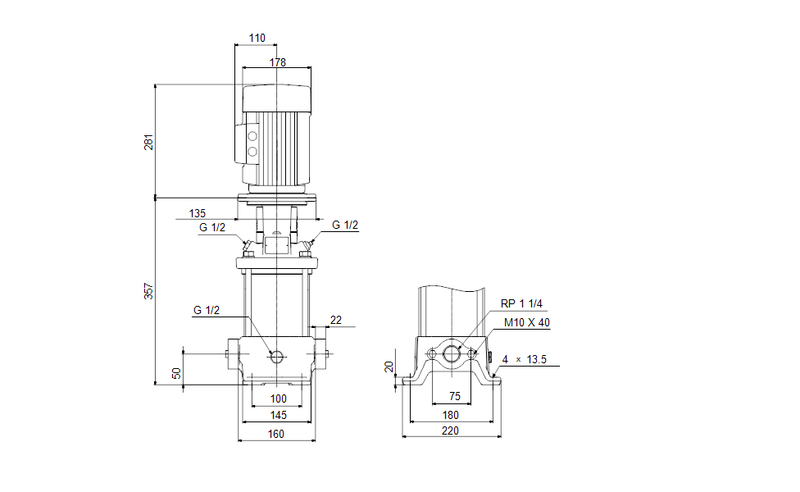

Dimensional Drawing

DWiring Diagram
