Grundfos 99356552 - CR 5-5 A-A-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99356552

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99356552 - CR 5-5 A-A-A-V-HQQV is a vertical, multistage centrifugal pump designed for industrial in-line and high-pressure systems. It suits technicians and maintenance teams replacing or servicing multistage centrifugal units.

Key features

  • Engineered for industrial applications and routine service use
  • Vertical, in-line multistage centrifugal configuration for compact installations
  • Provides reliable high-pressure performance for process, transfer, and boost tasks

Applications

Typical uses include boiler feed, pressure boosting, process circulation, and industrial fluid transfer where vertical multistage in-line pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99356552

EAN 5713827775208
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT115
Frequency converter NONE
Gross weight 74.6 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 169 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT115
Motor efficiency at 1/2 load 87.1-83.7 %
Motor efficiency at 3/4 load 87.5-86.3 %
Motor efficiency at full load 1 85.5-85.5 %
Motor standard IEC
Motor type 90GB
Net weight 68.3 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.85-0.75
Pressure rating for connection PN 16
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated current 5
Rated flow 30.4 US gpm
Rated head 119.8 ft
Rated power - P2 1.5 kW
Rated speed 3480-3530 rpm
Rated voltage 3 x 230-277D/400-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 5
Standard IEC
Starting current 780-980 %
Type 90GB
Type of connection Oval / Rp
Version A

Motor Curves

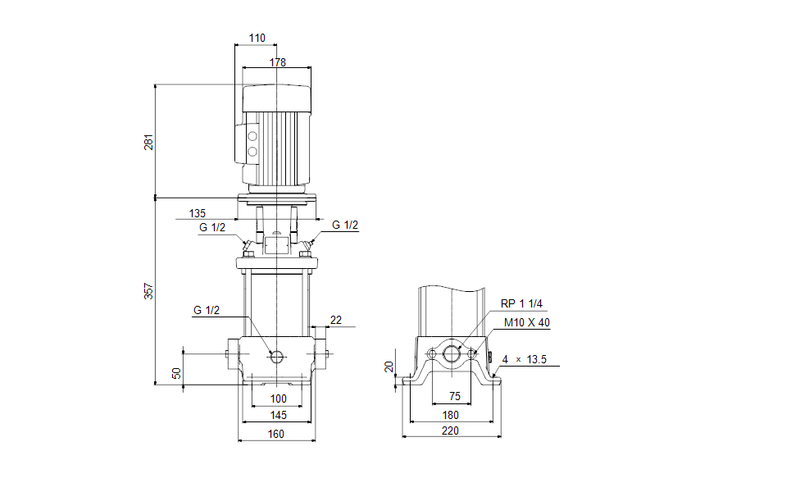

Dimensional Drawing

DWiring Diagram
