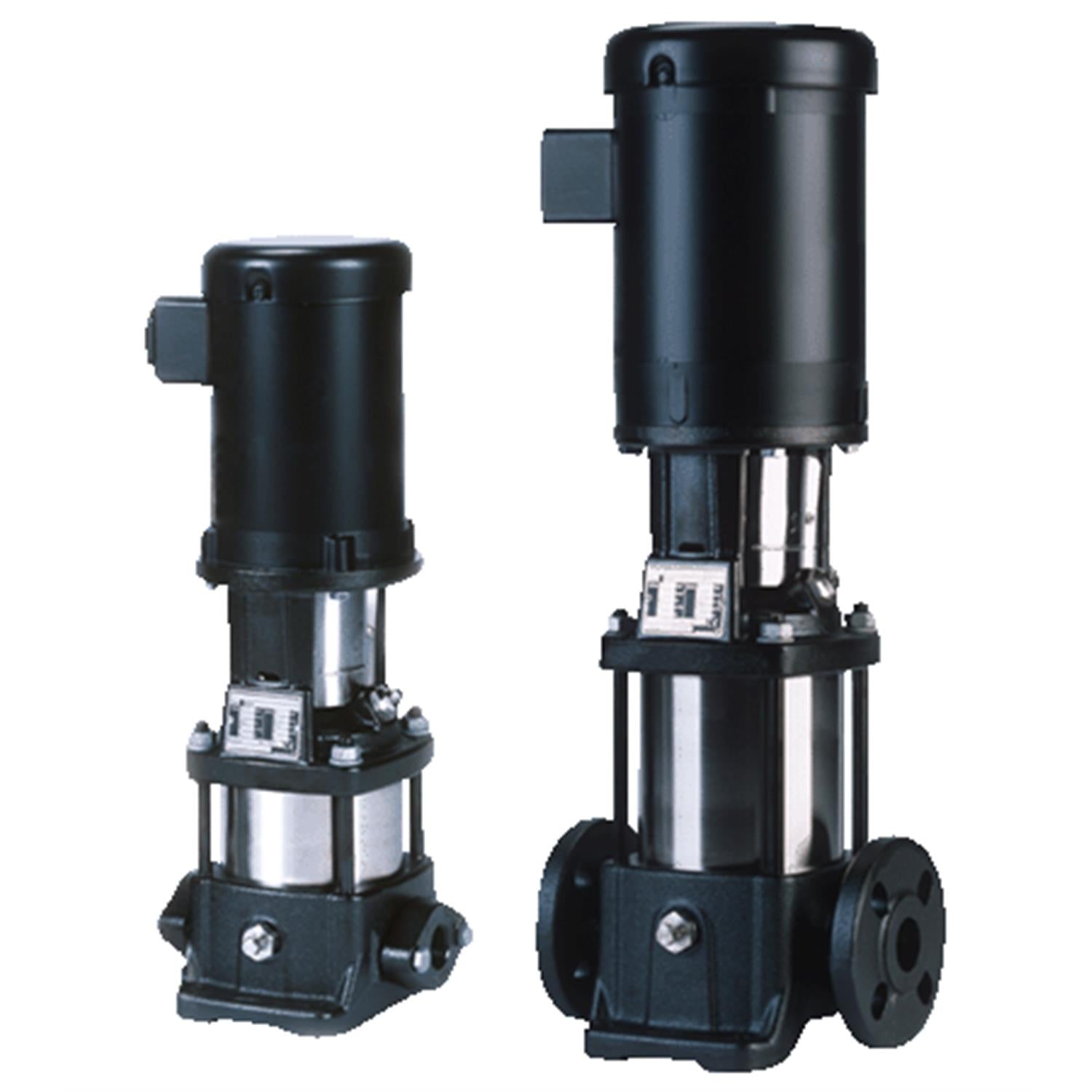

Grundfos 99968271 - CR 5-4 K-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $1,445.78
GRUNDFOSSKU: 99968271

Price:
Sale price$1,932.22 Regular price$3,378.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Introducing the Grundfos 99968271 - CR 5-4 K-FGJ-A-E-HQQE, a reliable vertical multistage centrifugal pump designed for various industrial applications. Manufactured by Grundfos, this pump is engineered to deliver high performance and efficiency.

Key Features:

  • Vertical multistage design
  • Suitable for high-pressure applications
  • Low NPSH capability

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you are considering this model, please ensure you match the exact model or SKU (99968271). If you have any questions or need assistance, do not hesitate to call us at (781) 281-8905.

For more information on specifications and applications, feel free to reach out to our team.

EAN 5715114888684
Applications Industrial applications
Actual impeller diameter 2.88 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection DIN / ANSI / JIS
Connection 2 DN 25/32
Connection 3 DN 25/32
Connection 4 PN 25
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 2.88 in
DOE Pump Energy Index CL 0.94
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.855
Flange rating inlet 250 lb
Flange size for motor 56C
Frequency 60 HZ
Frequency converter NONE
Full load SF current 5.68/2.84 A
Gross weight 98.7 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 85,5%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 4
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 115.5 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.825
Motor efficiency at 3/4 load 0.855
Motor efficiency at full load 1 0.855
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3520rpm
Net weight 87.7 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 2 HP
P2 kW 1.5kW
Phase 3
Power (P2) required by pump 2 HP
Power factor 1 0.89
Pressure rating PN 25
Pressure rating for connection PN 25
Product family CR 5
Pump 2 HP
Pump housing Cast iron
Pump inlet DN 25/32
Pump outlet DN 25/32
Pump version K
Pumped liquid Water
Rated current 4.94/2.47 A
Rated flow 30.4 US gpm
Rated flow 2 30.4 US gpm
Rated head 93.18 ft
Rated head 2 93.18 ft
Rated power - P2 2 HP
Rated speed 3520 rpm
Rated voltage 3 x 230/460 V
Real Time 1 Available on 10/10/2023 Plant: Fresno Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQE
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 4
Standard NEMA
Starting current 9.9
Type WEG
Type of connection DIN / ANSI / JIS
Version K
