Grundfos 97925031 - CR 5-4 A-A-A-V-HUUV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97925031

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97925031 - CR 5-4 A-A-A-V-HUUV Vertical Multistage Centrifugal Pump

The Grundfos 97925031 - CR 5-4 A-A-A-V-HUUV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CR 5-4 A-A-A-V-HUUV model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, making it a versatile solution for various industries.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710620259560
Approvals CE
Approvals for drinking water WRAS
Code for rubber V
Code for shaft seal HUUV
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT100
Frequency converter NONE
Gross weight 37.6 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum head 135.5 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT100
Motor standard IEC
Net weight 31.7 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3463 rpm
Pump version A
Pumped liquid Water
Rated flow 30.4 US gpm
Rated head 93.18 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 4
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

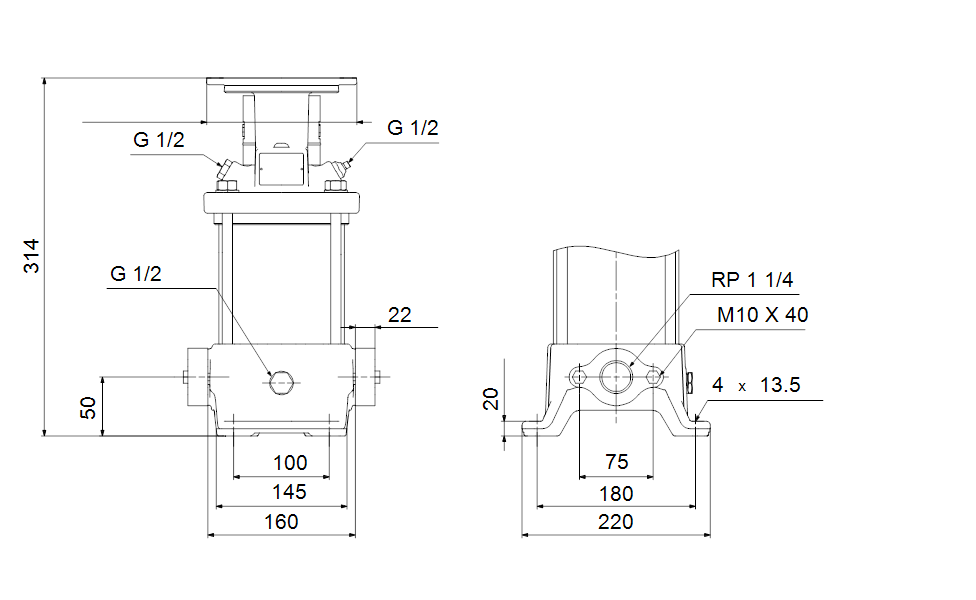

Dimensional Drawing
