Grundfos 97570697 - CR 5-4 A-A-A-V-HUUV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 97570697

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

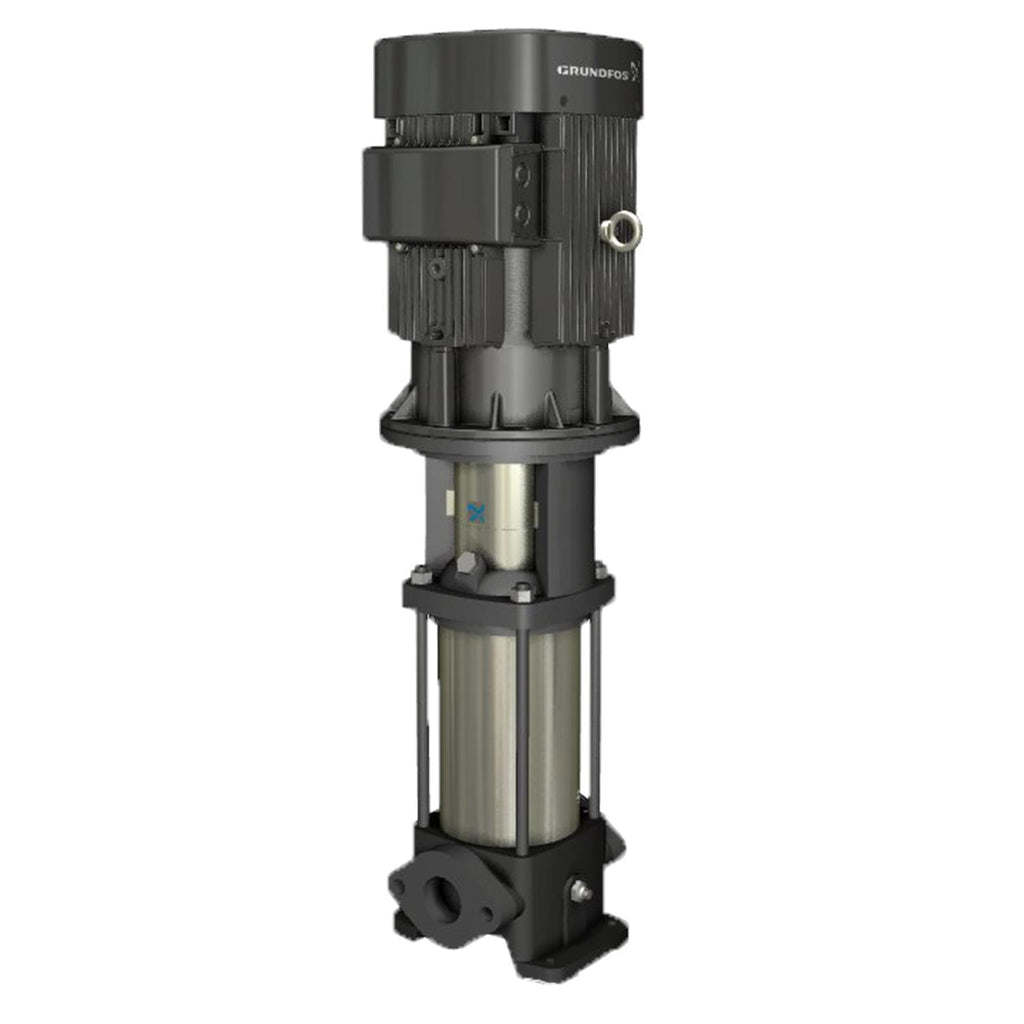

CR 5-4 A-A-A-V-HUUV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5700318755856
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HUUV
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT100
Frequency converter NONE
Gross weight 59.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 131.2 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT100
Motor efficiency at 1/2 load 86.4-85.5 %
Motor efficiency at 3/4 load 86.0-86.5 %
Motor efficiency at full load 1 84.0-84.0 %
Motor standard IEC
Motor type 80C
Net weight 52.9 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.86-0.81
Pressure rating for connection PN 16
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3392 rpm
Pump version A
Pumped liquid Water
Rated current 4
Rated flow 30.4 US gpm
Rated head 89.24 ft
Rated power - P2 1.1 kW
Rated speed 3380-3450 rpm
Rated voltage 3 x 200-220D/346-380Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 4
Standard IEC
Starting current 670-890 %
Type 80C
Type of connection Oval / Rp
Version A

Motor Curves

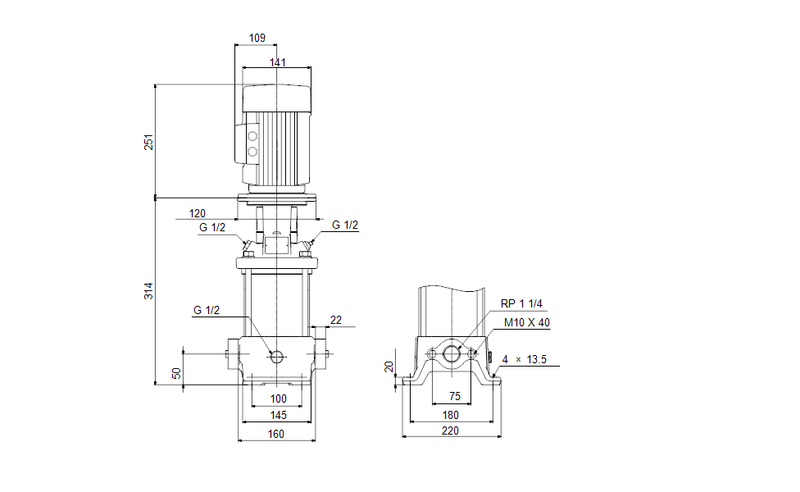

Dimensional Drawing

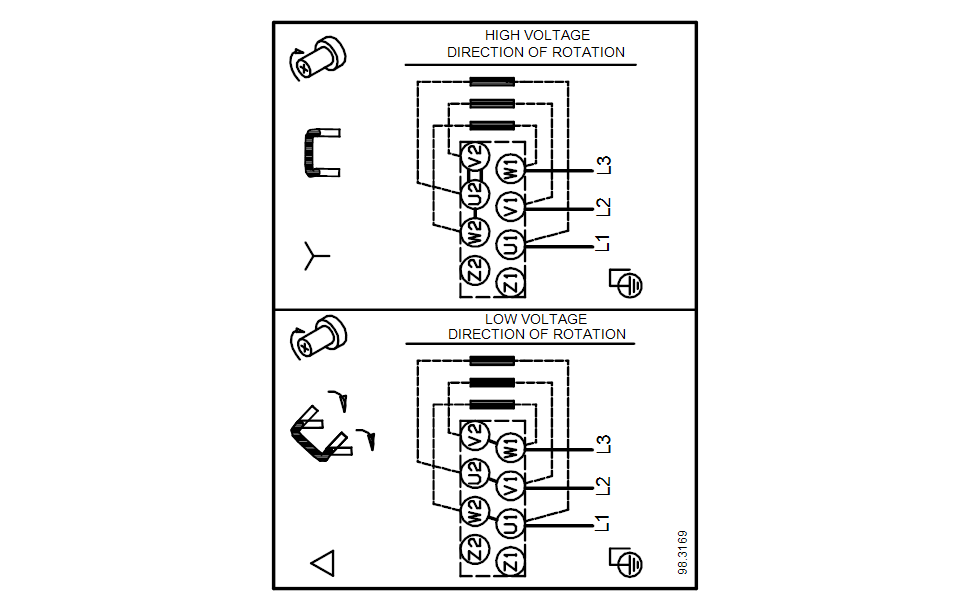

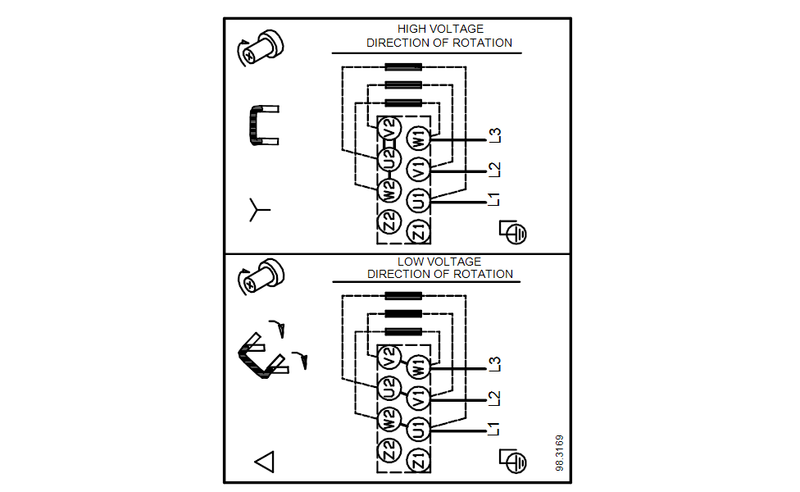

DWiring Diagram
