Grundfos 96542804 - CR 5-32 A-FGJ-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96542804

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 5-32 A-FGJ-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.

EAN 5700398042082
Approvals CE
Approvals for drinking water WRAS
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Flange rating inlet 250 lb
Flange size for motor FF265
Frequency converter NONE
Gross weight 60.9 kg
Impeller Stainless steel
Impellers 0
Liquid temperature range -20 .. 90 °C
Low NPSH N
Material code A
Max pressure at stated temp 25 bar / 90 °C
Maximum head 218.8 m
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FF265
Motor standard IEC
Net weight 39.9 kg
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version A
Pumped liquid Water
Rated flow 5.8 m³/h
Rated head 168.6 m
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 20 °C
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 32
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

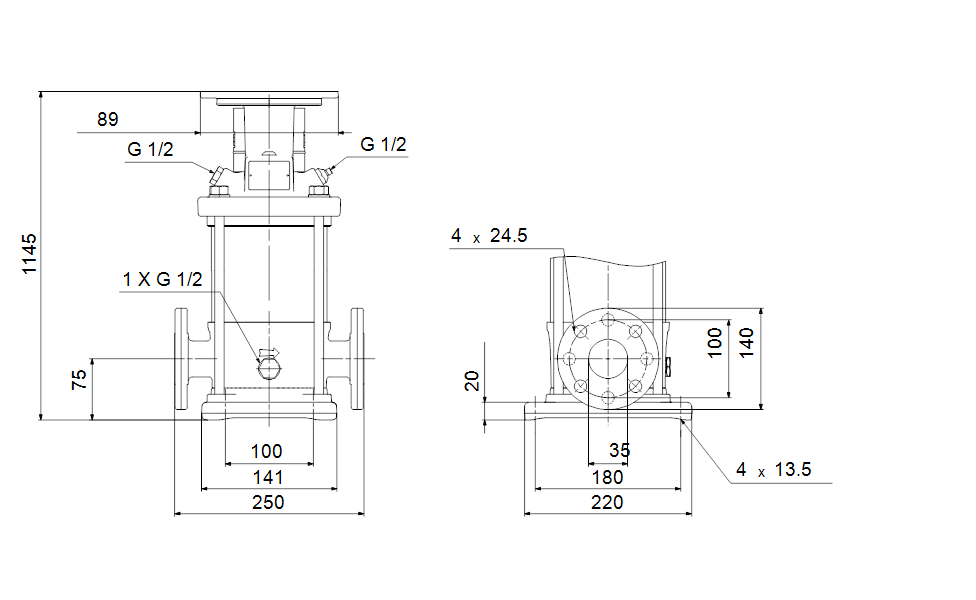

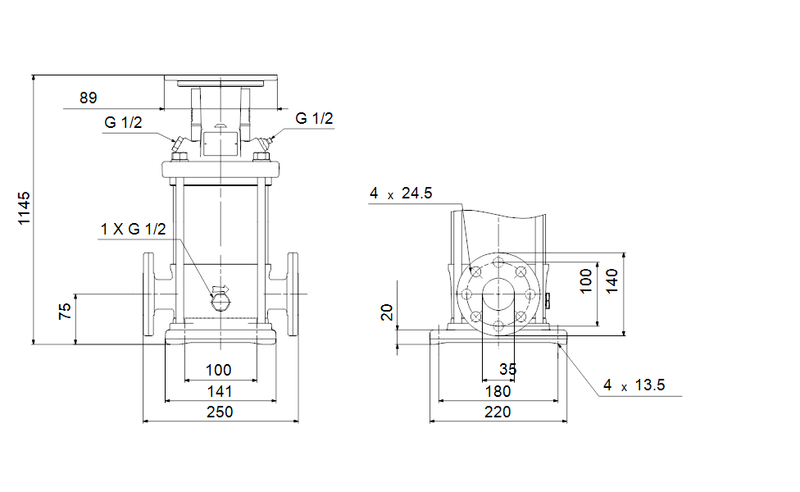

Dimensional Drawing
