Grundfos 98907921 - CR 5-3 A-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98907921

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98907921 - CR 5-3 A-FGJ-A-V-HQQV is a vertical multistage centrifugal pump suited for industrial and commercial fluid transfer tasks; technicians and maintenance teams commonly install this model where high-pressure, inline pumping is required.

Key features

  • Engineered as a multistage centrifugal unit for elevated pressure and consistent flow
  • Vertical, in-line configuration ideal for space-constrained pump stations and skids
  • Durable service-oriented design that reduces downtime and simplifies maintenance

Applications

Typical uses include high-pressure boosting, boiler feed, water treatment, HVAC and process circulation where compact vertical multistage pumps are preferred.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98907921

EAN 5712603376622
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 250 lb
Flange size for motor FT100
Frequency converter NONE
Gross weight 67.9 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 106 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT100
Motor efficiency at 1/2 load 86.4-85.5 %
Motor efficiency at 3/4 load 86.0-86.5 %
Motor efficiency at full load 1 82.5-84.0 %
Motor standard IEC
Motor type 80CA
Net weight 61.8 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.88-0.80
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3463 rpm
Pump version A
Pumped liquid Water
Rated current 4
Rated flow 30.4 US gpm
Rated head 72.84 ft
Rated power - P2 1.1 kW
Rated speed 3420-3470 rpm
Rated voltage 3 x 220-255D/380-440Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 3
Standard IEC
Starting current 430-500 %
Type 80CA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

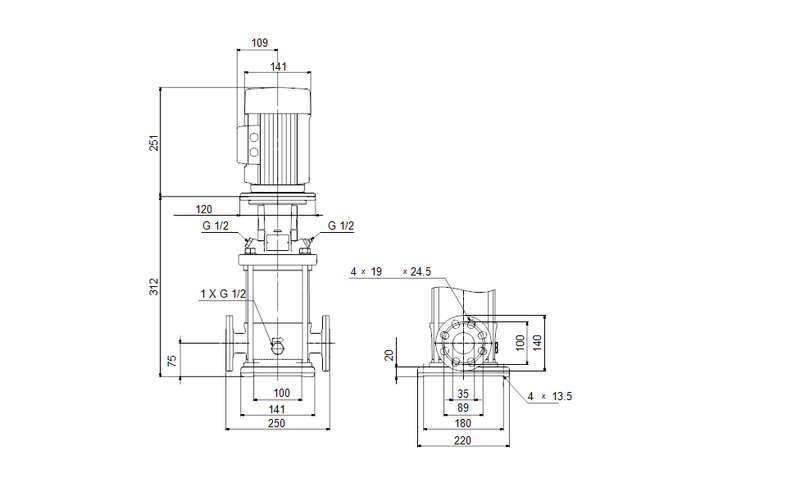

Dimensional Drawing
