Grundfos 96546109 - CR 5-24 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96546109

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96546109 - CR 5-24 A-FGJ-A-E-HQQE is a vertical multistage centrifugal pump designed for inline, high-pressure industrial fluid handling. It suits maintenance technicians and facilities managers replacing or servicing centrifugal pump systems.

Key features

  • Vertical multistage centrifugal design for compact, high-pressure pump applications
  • Common service special SKU used across Grundfos centrifugal and in-line pump lines
  • Reliable replacement option that simplifies repair and reduces downtime

Applications

Typical uses include boiler feed, high-pressure water supply, reverse osmosis feed, pressure boosting, and general industrial process pumping where a vertical multistage centrifugal unit is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96546109

EAN 5700398451020
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 250 lb
Flange size for motor FF265
Frequency converter NONE
Gross weight 124.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 250 °F
Maximum head 777.9 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FF265
Motor standard IEC
Net weight 77.5 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3525 rpm
Pump version A
Pumped liquid Water
Rated flow 30.4 US gpm
Rated head 602.4 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 24
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

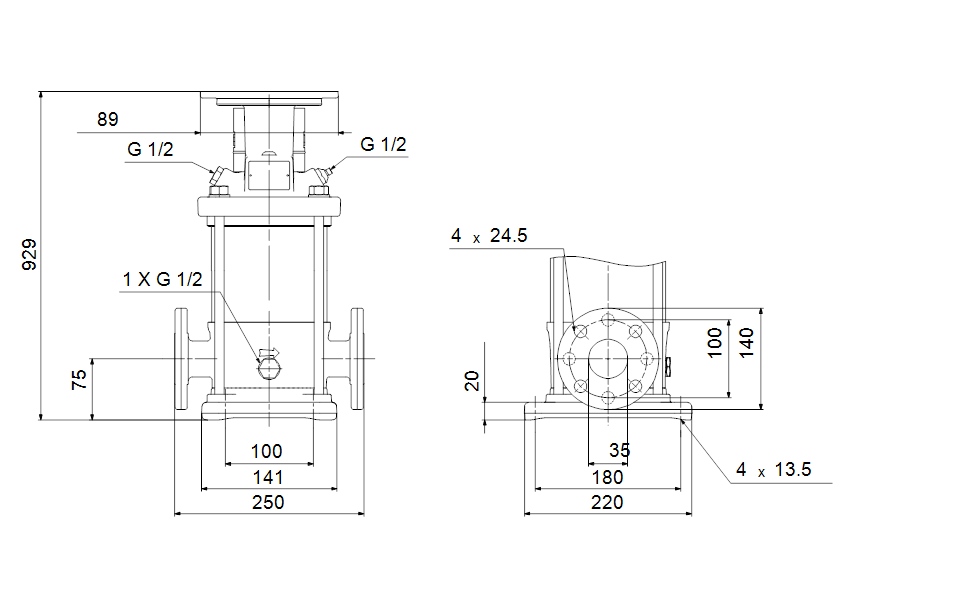

Dimensional Drawing
