Grundfos 99388972 - CR 5-16 B-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99388972

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99388972 is a CR 5-16 vertical multistage centrifugal pump designed for inline, high-pressure industrial fluid handling. Typical users include service technicians and facilities managers seeking a reliable replacement pump for pressurized systems.

Key features

  • Vertical multistage centrifugal design for compact footprint and smooth flow
  • Service-special model suited for in-line and high-pressure applications from tag categories
  • Durable construction providing stable pressure delivery and straightforward maintenance

Applications

Common uses include boiler feed, pressure boosting, industrial process circulation, and other high-pressure in-line multistage duties where compact vertical installation is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99388972

EAN 5713828317513
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 213TC
Frequency converter NONE
Gross weight 172.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 520 ft
Maximum operating pressure 16 bar
Model A
Motor 213TC
Motor efficiency at 1/2 load 88.1-86.7 %
Motor efficiency at 3/4 load 89.6-89.1 %
Motor efficiency at full load 1 89.5-89.5 %
Motor standard NEMA
Motor type 132DA
Net weight 154.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.89-0.86
Pressure rating for connection PN 16
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3461 rpm
Pump version B
Pumped liquid Water
Rated current 19
Rated flow 30.4 US gpm
Rated head 384.2 ft
Rated power - P2 5.5 kW
Rated speed 3490-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 16
Standard NEMA
Starting current 1020-1480 %
Type 132DA
Type of connection Oval / NPT(F)
Version B

Motor Curves

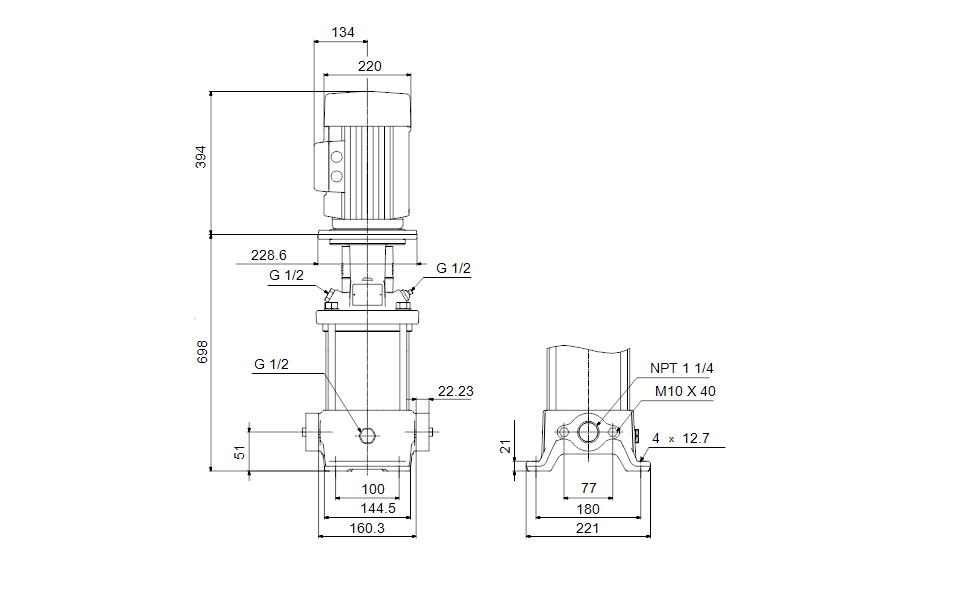

Dimensional Drawing

DWiring Diagram
