Grundfos 96546045 - CR 5-15 A-A-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96546045

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

CR 5-15 A-A-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Liquid: Pumped liquid:

EAN 5700398443148
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT130
Frequency converter NONE
Gross weight 52.7 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 484.6 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT130
Motor standard IEC
Net weight 46.4 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 3520 rpm
Pump version A
Pumped liquid Water
Rated flow 30.4 US gpm
Rated head 368.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 15
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

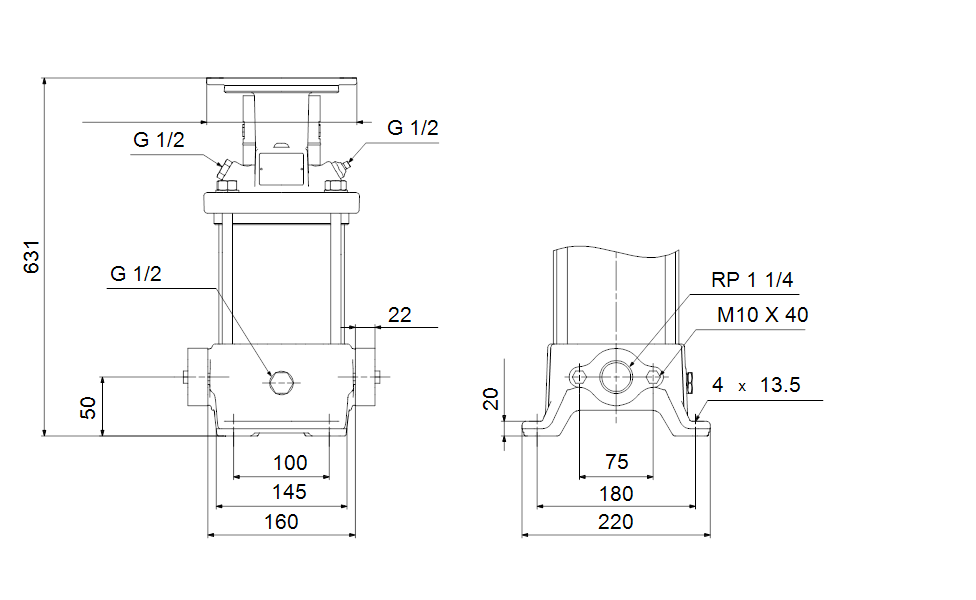

Dimensional Drawing
