Grundfos 98161072 - CR 5-14 A-A-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,376.00
GRUNDFOSSKU: 98161072

Price:
Sale price$2,574.00 Regular price$4,950.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98161072 - CR 5-14 A-A-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for high-pressure systems.

This model features a robust construction that ensures durability and long service life, suitable for both water supply and process applications. The CR 5-14 A-A-A-E-HQQE is part of the CR series, known for its versatility and adaptability in various operational environments.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

Explore our extensive range of centrifugal pumps, including single and multi-stage options, and discover why the Grundfos CR series is a trusted choice for professionals across industries.

EAN 5710629590978
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT115
Frequency converter NONE
Gross weight 95.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 312 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT115
Motor efficiency at 1/2 load 88.0-85.5 %
Motor efficiency at 3/4 load 88.2-87.2 %
Motor efficiency at full load 1 85.9-85.9 %
Motor standard IEC
Motor type 90HA
Net weight 88.6 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.86-0.80
Pressure rating for connection PN 16
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 2899 rpm
Pump version A
Pumped liquid Water
Rated current 8.00/4.60 A
Rated flow 25.5 US gpm
Rated head 233.3 ft
Rated power - P2 2.2 kW
Rated speed 2890-2910 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 14
Standard IEC
Starting current 840-920 %
Type 90HA
Type of connection Oval / Rp
Version A

Motor Curves

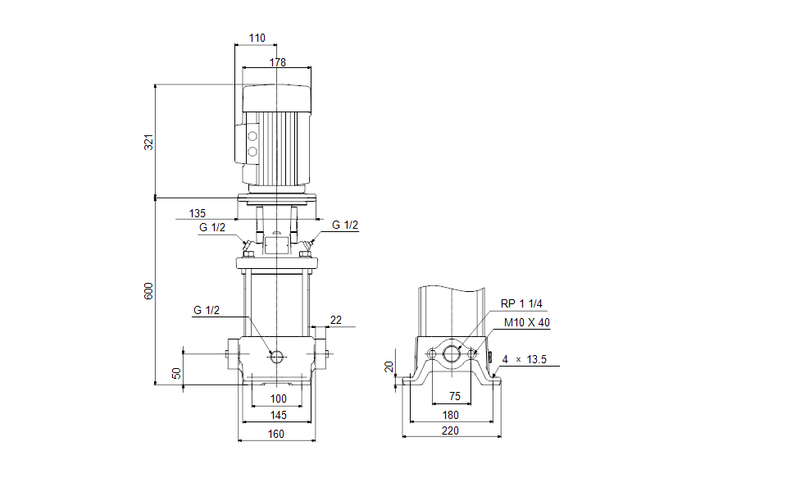

Dimensional Drawing

DWiring Diagram
