Grundfos 96984811 - CR 5-14 H-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,789.70
GRUNDFOSSKU: 96984811

Price:
Sale price$3,728.30 Regular price$6,518.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96984811 - CR 5-14 H-GA-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 96984811 - CR 5-14 H-GA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting pressure in water supply systems, irrigation, and other demanding environments.

This model features a robust construction and advanced design, ensuring durability and longevity. It is part of the CR series, known for its versatility and efficiency in handling various fluids. The CR 5-14 H-GA-A-E-HQQE is suitable for both horizontal and vertical installations, providing flexibility in system design.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 25
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency 60 Hz
Frequency converter NONE
Gross weight 245.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CR 5-14 H-GA-A-E-HQQE
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 140 °F
Maximum head 456.1 ft
Maximum operating pressure 362.59 psi
Model A
Motor 182TC
Motor efficiency at 1/2 load 86.9-84.7 %
Motor efficiency at 3/4 load 88.5-87.3 %
Motor efficiency at full load 1 88.5-88.5 %
Motor standard NEMA
Motor type 112CA
n rpm F
Net weight 145.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 5.5 HP
Phase 3
Power (P2) required by pump 5.5 HP
Power factor 1 0.89-0.86
Pressure rating for connection PN 25
Pressure sensor N
Pump 5.5 HP
Pump version H
Rated current 14,1-13,1/7,29 A
Rated flow 30.8 US gpm
Rated head 337.3 ft
Rated power - P2 5.5 HP
Rated speed 3525-3540 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber E
Sales region USA
Service factor 1.15
Shaft Product name:CR 5-14 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 14
Standard NEMA
Starting current 1000-1470 %
Type 112CA
Version H

Motor Curves

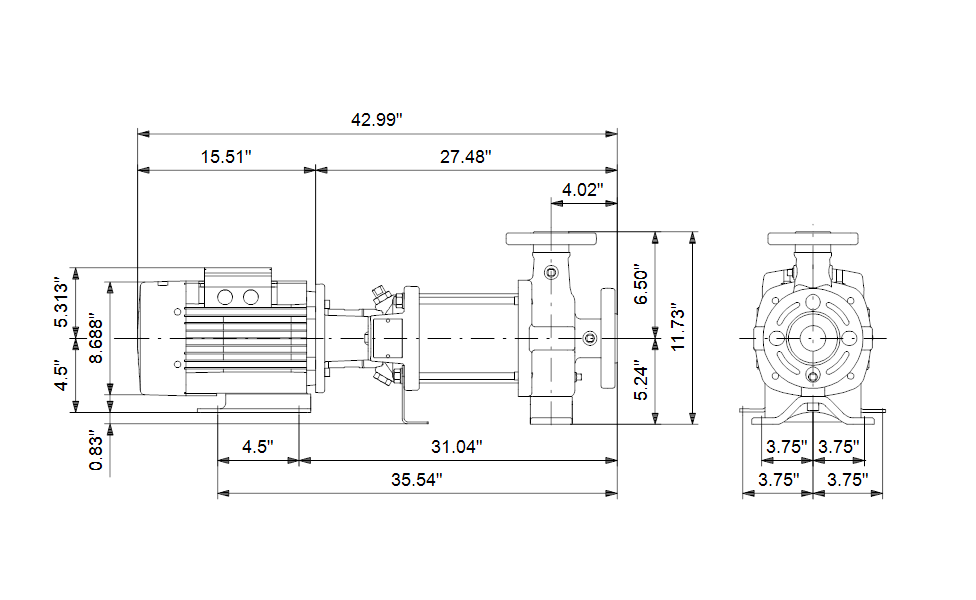

Dimensional Drawing

DWiring Diagram
