Grundfos 97570002 - CR 5-13 H-GA-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $1,783.48
GRUNDFOSSKU: 97570002

Price:
Sale price$2,383.52 Regular price$4,167.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97570002 - CR 5-13 H-GA-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97570002 - CR 5-13 H-GA-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting pressure and transferring fluids in various systems.

This model is part of the CR series, known for its robust construction and versatility. It is suitable for both horizontal and vertical installations, providing flexibility in system design. The CR 5-13 H-GA-A-E-HQQE is tagged under various categories including Cr H, Cr H Crn H, Cre H, and Crne H, ensuring compatibility with a wide range of applications.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to chat with us or give us a call. Let us help you find the perfect solution for your pumping needs!

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code GA
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 77.6 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum head 424.2 ft
Maximum operating pressure 232.06 psi
Model A
Motor 182TC
Motor standard NEMA
n rpm 3461rpm
Net weight 59.7 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 30.8 US gpm
Rated head 314.3 ft
Rubber E
Sales region USA
Shaft Product name:CR 5-13 H-GA-A-E-HQQE
Shaft seal HQQE
Stages 13
Standard NEMA
Version H

Motor Curves

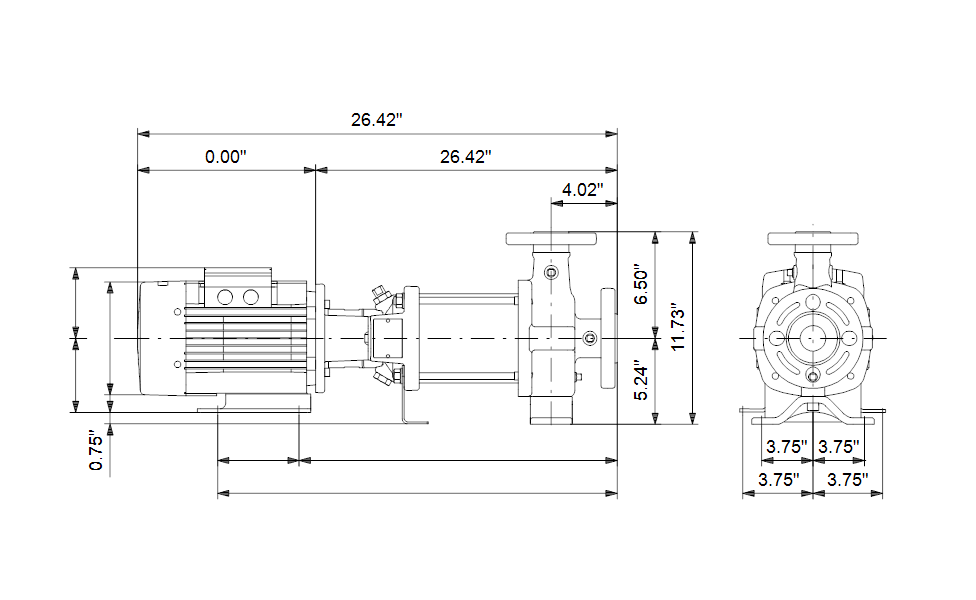

Dimensional Drawing
