Grundfos 96945407 - CR 5-13 K-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96945407

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96945407 - CR 5-13 K-B-A-E-HQQE is a vertical multistage centrifugal pump designed for industrial and commercial fluid handling. It fits applications requiring high-pressure, in-line vertical installations and is used by maintenance technicians and service shops.

Key features

  • Multistage centrifugal design for increased pressure in compact vertical footprint
  • Suitable for in-line, vertical installations and high-pressure service as indicated by tags
  • Engineered for reliable performance and simplified serviceability in industrial settings

Applications

Typical uses include high-pressure water transfer, boiler feed, process circulation, and general industrial fluid handling where vertical, multi-stage centrifugal pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96945407

EAN 5700314366957
Actual impeller diameter 2.88 in
Approvals CURUS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 2.88 in
DOE Pump Energy Index CL 0.94
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 182TC
Frequency converter NONE
Gross weight 155.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 420.6 ft
Maximum operating pressure 16 bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 86.9-84.7 %
Motor efficiency at 3/4 load 88.5-87.3 %
Motor efficiency at full load 1 88.5-88.5 %
Motor standard NEMA
Motor type 112CA
Net weight 137.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Power factor 1 0.89-0.86
Pressure rating for connection PN 16
Pressure sensor N
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version K
Pumped liquid Water
Rated current 14
Rated flow 30.4 US gpm
Rated head 319.9 ft
Rated power - P2 3.7 kW
Rated speed 3525-3540 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 13
Standard NEMA
Starting current 1000-1470 %
Type 112CA
Type of connection Oval / NPT(F)
Version K

Motor Curves

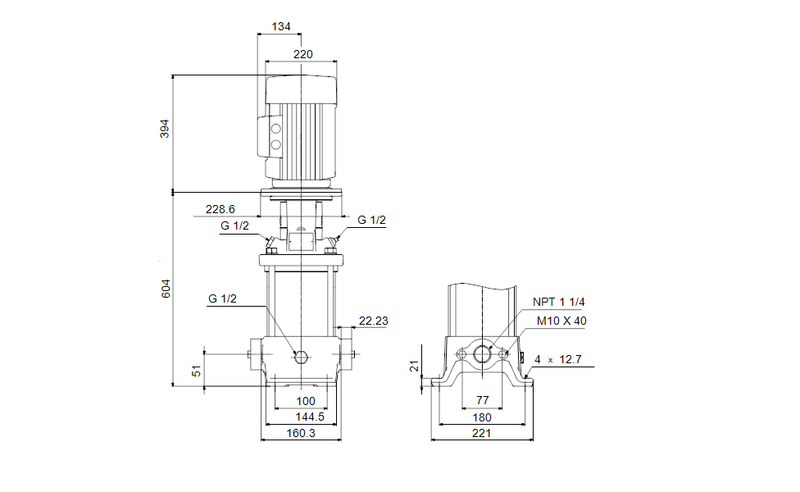

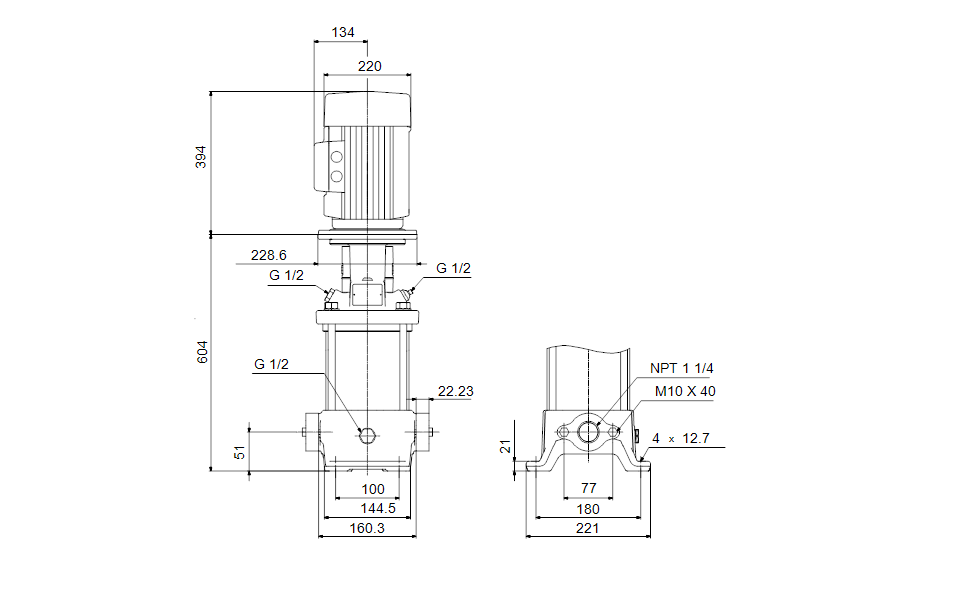

Dimensional Drawing

DWiring Diagram
