Grundfos 96542412 - CR 5-13 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96542412

Price:
Sale price$5,237.50
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96542412 - CR 5-13 A-FGJ-A-E-HQQE is a vertical multistage centrifugal pump designed for inline, high-pressure industrial service. This compact, vertically oriented unit is used by maintenance and service teams for water boost, boiler feed, and process circulation applications.

Key features

  • Multistage centrifugal design for higher pressure and consistent flow
  • Vertical, in-line configuration suited for compact installations and pump skids
  • Service-special offering for replacement and maintenance scenarios

Applications

Typical uses include water boosting, boiler feed, process circulation, and high-pressure in-line pumping where a vertical multistage centrifugal solution is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96542412

EAN 5700398004882
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 250 lb
Flange size for motor FT115
Frequency converter NONE
Gross weight 59.8 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 290 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT115
Motor standard IEC
Net weight 53.7 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 2899 rpm
Pump version A
Pumped liquid Water
Rated flow 25.5 US gpm
Rated head 216.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 13
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

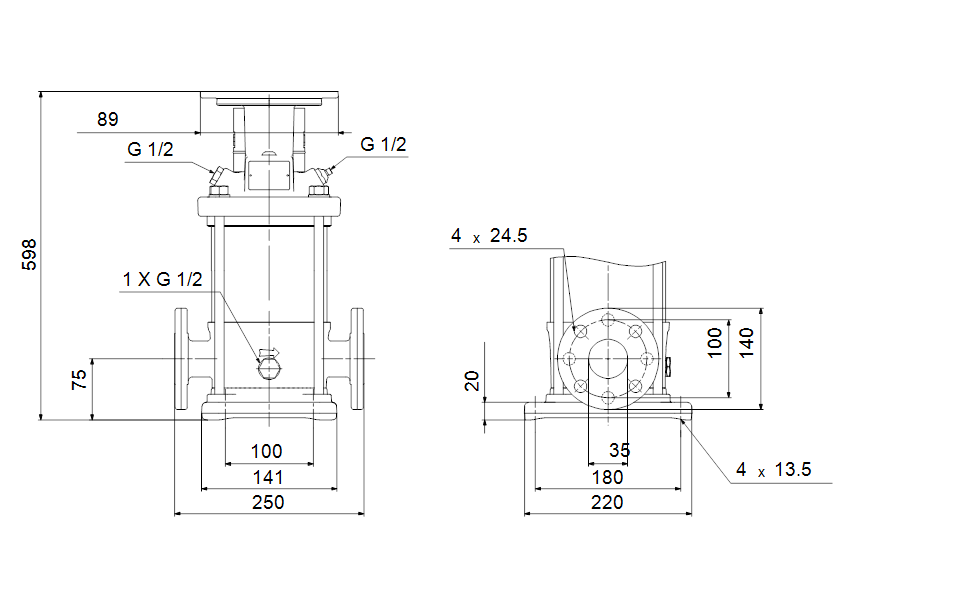

Dimensional Drawing
