Grundfos 96542011 - CR 5-12 A-A-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96542011

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96542011 - CR 5-12 A-A-A-E-HQQE is a vertical multistage centrifugal pump designed for industrial and commercial fluid transfer where reliable high-pressure, in-line operation is required. Technicians and maintenance teams use this model for system repair and replacement.

Key features

  • Manufactured by Grundfos for various industrial applications
  • Vertical, multistage centrifugal design for high pressure and in-line installations
  • Delivers reliable, efficient pumping performance to support continuous operation and reduced downtime

Applications

Suitable for high-pressure water supply, boiler feed, reverse osmosis boosters, and general industrial liquid transfer where a vertical multistage centrifugal pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call 781-281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96542011

EAN 5700397972762
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code A
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT115
Frequency converter NONE
Gross weight 48.5 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 268.1 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT115
Motor standard IEC
Net weight 42.4 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 2899 rpm
Pump version A
Pumped liquid Water
Rated flow 25.5 US gpm
Rated head 200.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 12
Standard IEC
Type of connection Oval / Rp
Version A

Motor Curves

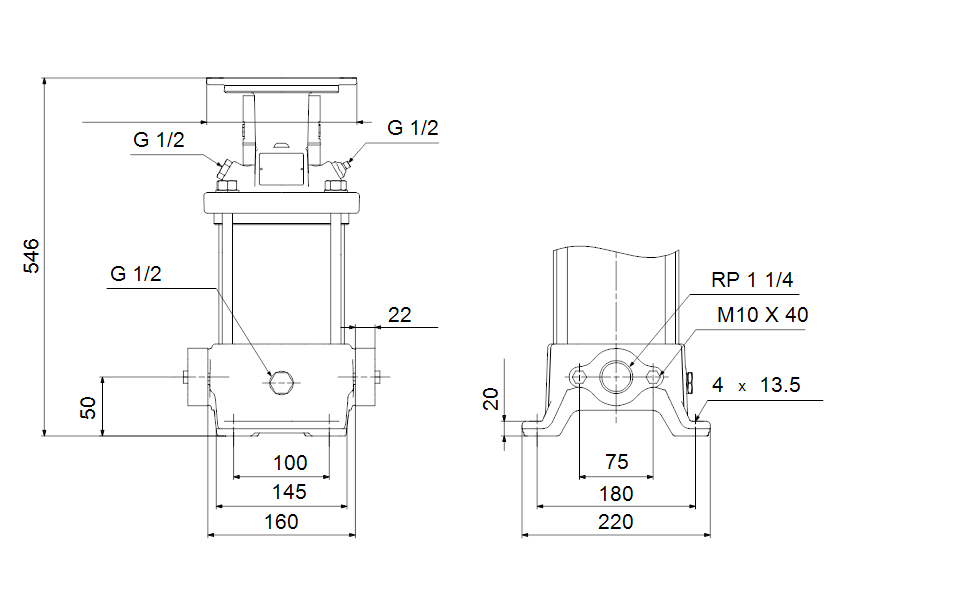

Dimensional Drawing
