Grundfos 98362064 - CR 5-10 P-B-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98362064

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98362064 - CR 5-10 P-B-A-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5711493684299
Approvals CURUS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code B
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 182TC
Frequency converter NONE
Gross weight 48.4 kg
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -20 .. 120 °C
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 16 bar / 120 °C
Maximum ambient temperature 60 °C
Maximum head 99.6 m
Maximum operating pressure 16 bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 91.4-90.1 %
Motor efficiency at 3/4 load 91.1-90.9 %
Motor efficiency at full load 1 86.5-86.5 %
Motor standard NEMA
Motor type 90HA
Net weight 41.9 kg
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.85-0.82
Pressure rating for connection PN 16
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3461 rpm
Pump version P
Pumped liquid Water
Rated current 8
Rated flow 6.9 m³/h
Rated head 73.7 m
Rated power - P2 2.2 kW
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 20 °C
Service factor 1.15
Size of inlet connection 1 1/4 inch
Size of outlet connection 1 1/4 inch
Stages 10
Standard NEMA
Starting current 850-970 %
Type 90HA
Type of connection Oval / NPT(F)
Version P

Motor Curves

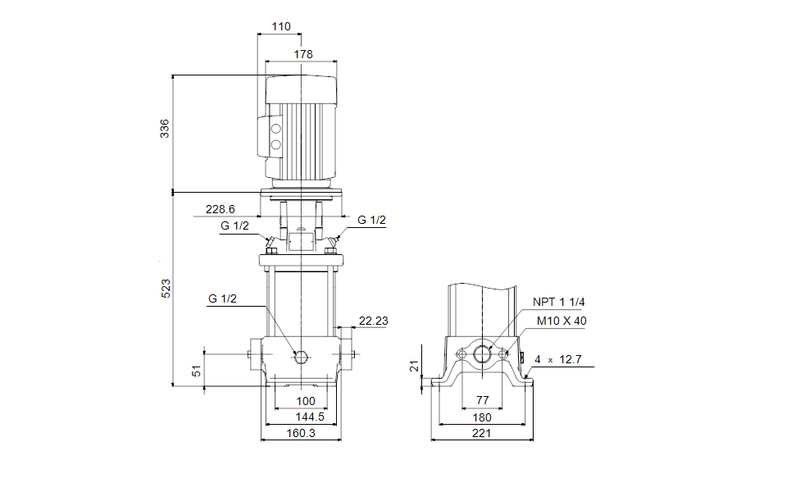

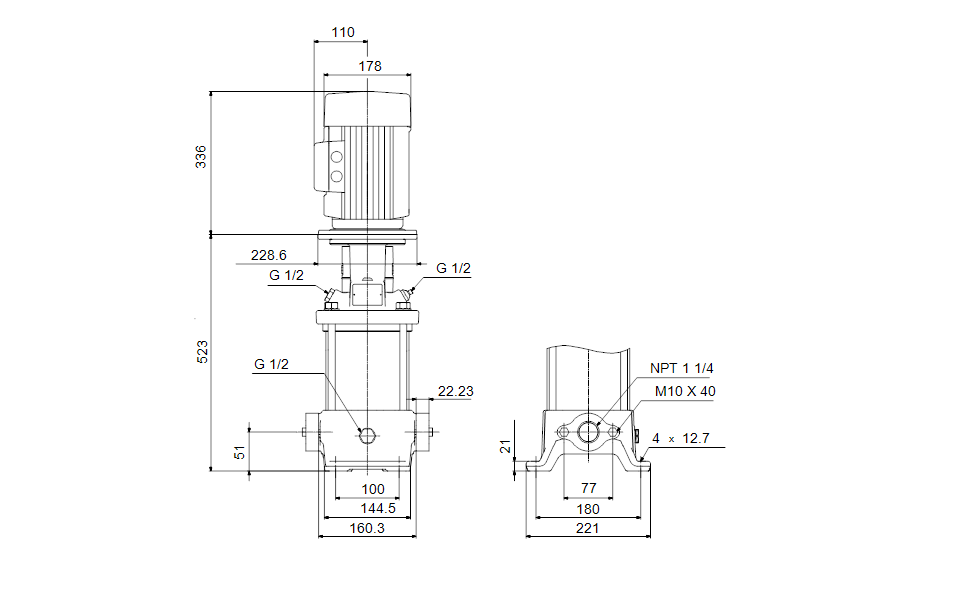

Dimensional Drawing

DWiring Diagram
