Grundfos 98113621 - CR 45-8-1 F-G-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98113621

Price:
Sale price$66,162.50
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

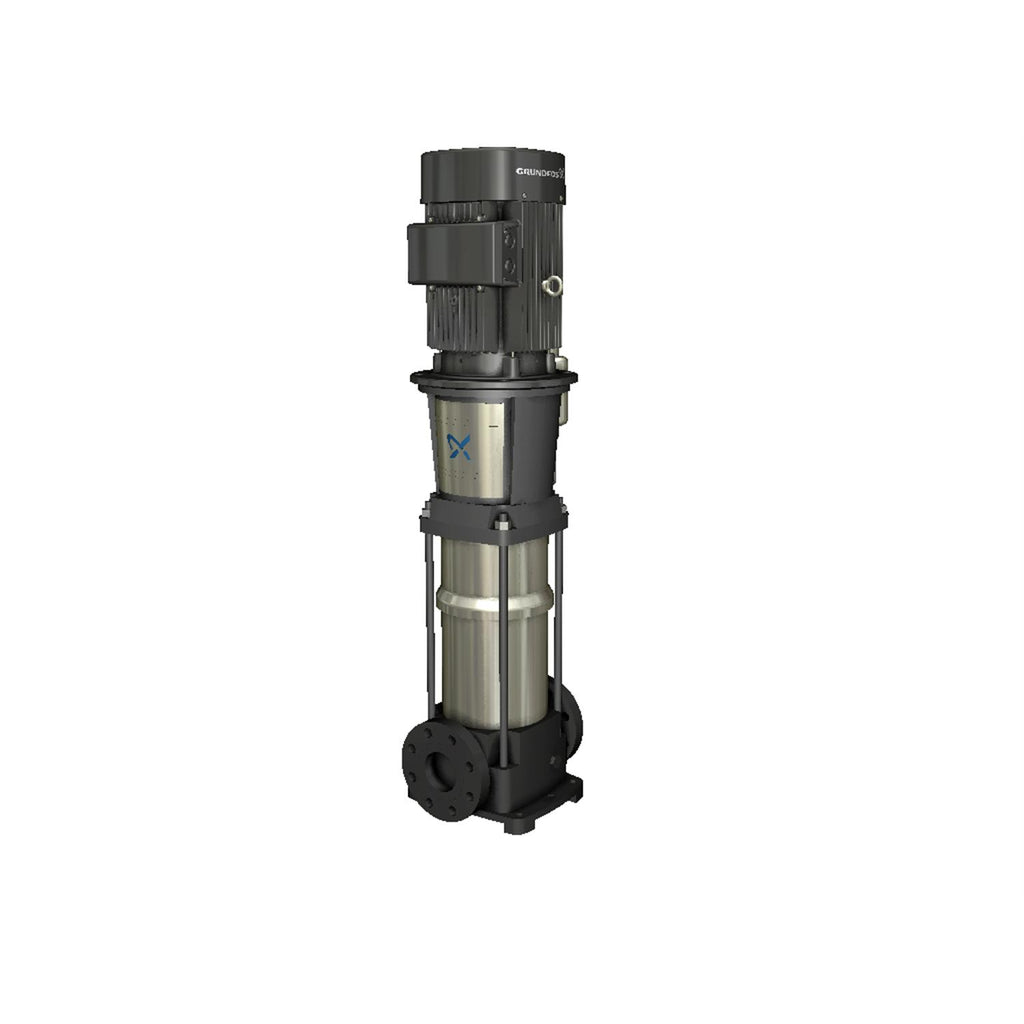

Grundfos 98113621 - CR 45-8-1 F-G-A-F-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98113621 - CR 45-8-1 F-G-A-F-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure and inline pumping needs.

With its robust construction and advanced design, the CR 45-8-1 model ensures optimal flow rates and pressure, catering to diverse operational requirements. This pump is part of the renowned Grundfos Centrifugal Pumps series, known for their durability and efficiency.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710629234148
Actual impeller diameter 5.34 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Enclosure class (IEC 34-5) IP54
Flange rating inlet 300 lb
Flange size for motor 364TC
Frequency converter NONE
Gross weight 897.0 lb
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 122 °F
Maximum head 946.2 ft
Maximum operating pressure 25 bar
Model B
Motor 364TC
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type BALDOR
Net weight 879.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power (P2) required by pump 45 kW
Power factor 1 0.87
Pressure rating for connection PN 40
Pressure sensor N
Pump 45 kW
Pump speed on which pump data are based 3550 rpm
Pump version F
Pumped liquid Water
Rated current 132/66 A
Rated flow 238 US gpm
Rated head 768.4 ft
Rated power - P2 45 kW
Rated speed 3550 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 8
Standard NEMA
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version F

Motor Curves

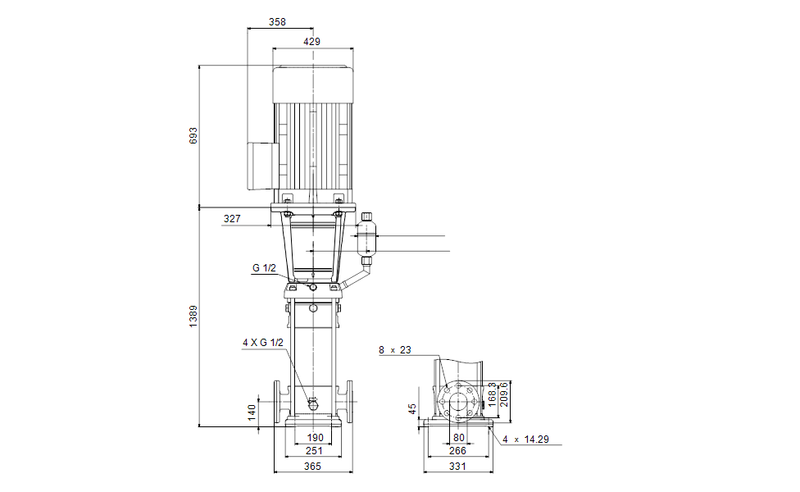

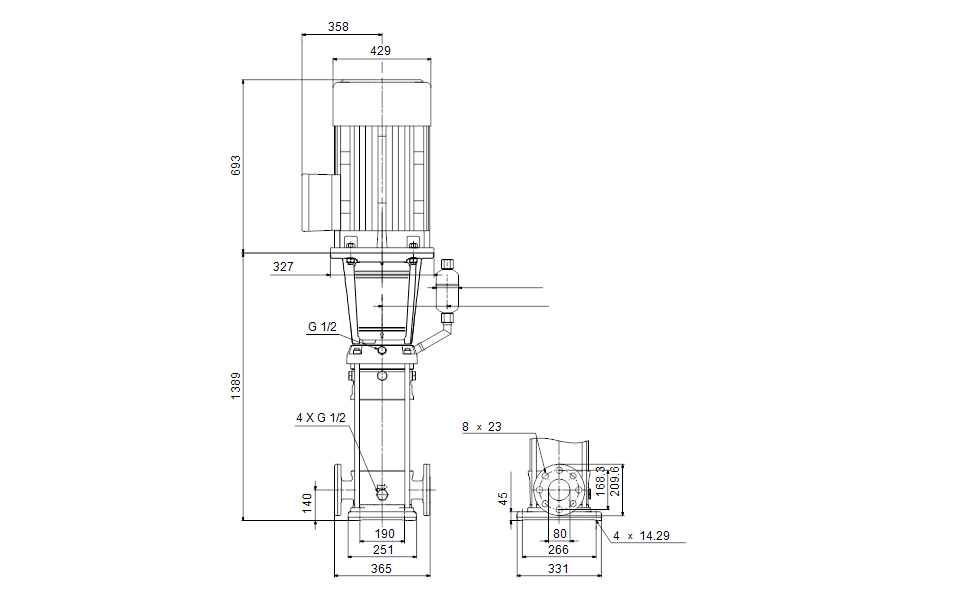

Dimensional Drawing

DWiring Diagram
