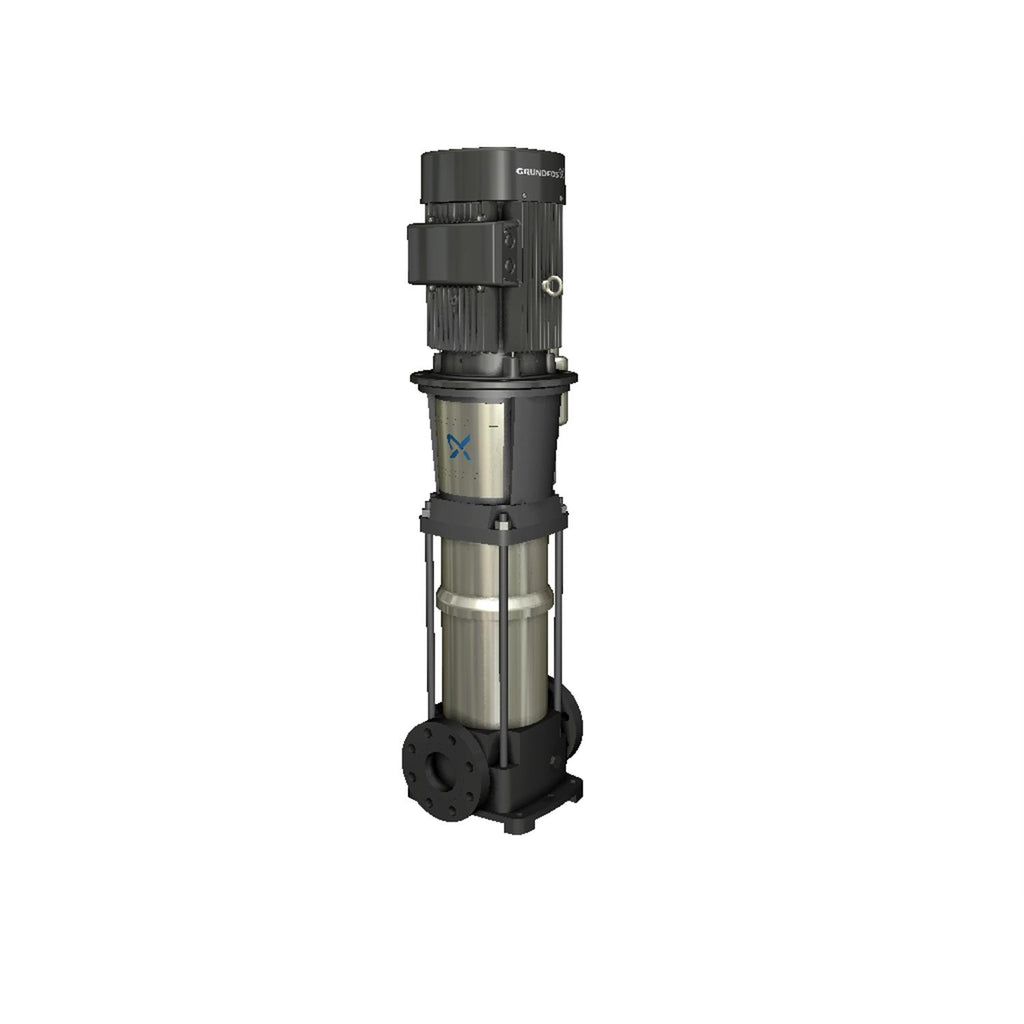

Grundfos 97665749 - CR 45-7 FK-G-A-F-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 97665749

Price:
Sale price$42,027.78
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 45-7 FK-G-A-F-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

EAN 5710620759466
Actual impeller diameter 5.37 in
Approvals CE
Bearing 1 Graflon
Code for rubber F
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Diameter 5.37 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 281.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 356 °F
Maximum head 846.2 ft
Maximum operating pressure 25 bar
Model B
Motor 324TC
Motor standard NEMA
Net weight 263.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 3550 rpm
Pump version FK
Rated flow 238 US gpm
Rated head 686.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 7
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version FK
