Grundfos 97532536 - CR 45-7 EK-F-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 97532536

Price:
Sale price$26,750.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 45-7 EK-F-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges.

EAN 5700317919761
Approvals CE
Approvals for drinking water WRAS
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FF400
Frequency converter NONE
Gross weight 339.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -22 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum head 846.2 ft
Maximum operating pressure 30 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF400
Motor standard IEC
Net weight 228.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 45 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 45 kW
Pump speed on which pump data are based 3565 rpm
Pump version EK
Pumped liquid Water
Rated flow 238 US gpm
Rated head 686.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 80
Size of outlet connection DN 80
Stages 7
Standard IEC
Support bearing Graflon
Type of connection DIN
Version EK

Motor Curves

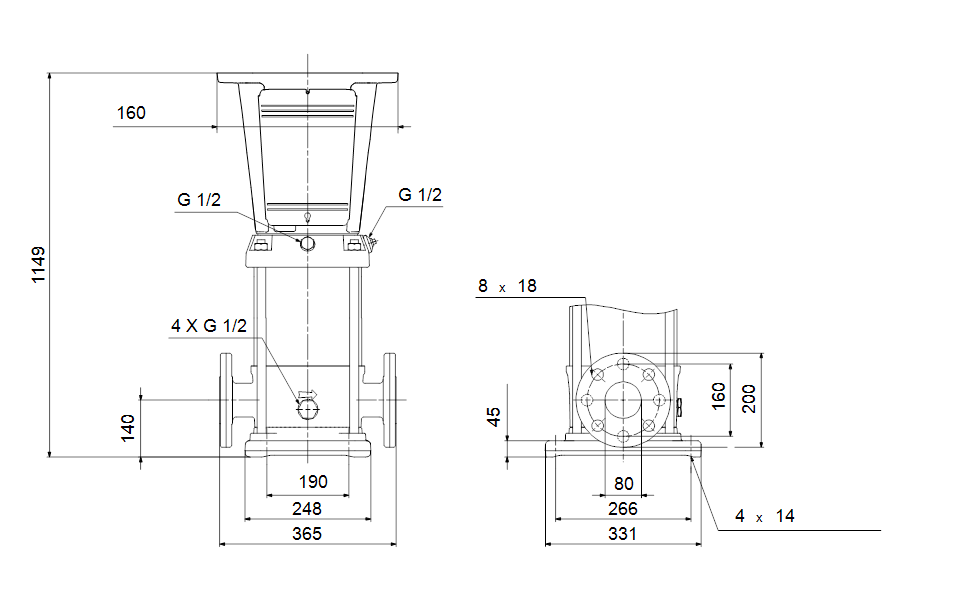

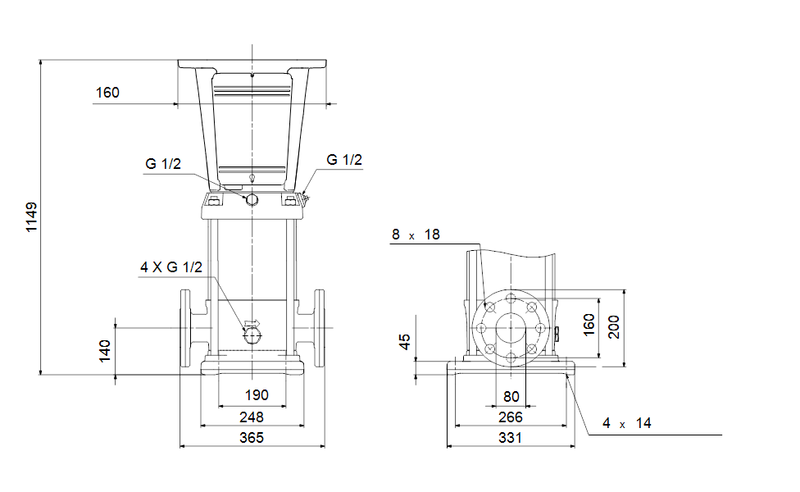

Dimensional Drawing
