Grundfos 98072417 - CR 45-7-2 K-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98072417

Price:
Sale price$25,931.94
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98072417 - CR 45-7-2 K-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98072417 - CR 45-7-2 K-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Known for its reliability and efficiency, this pump is ideal for high-pressure water supply, irrigation, and other demanding tasks.

Manufactured by Grundfos, a leader in pump technology, the CR 45-7-2 model features a robust construction that ensures durability and long service life. Its multistage design allows for increased pressure capabilities, making it suitable for applications where consistent performance is crucial.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710628462399
Actual impeller diameter 5.37 in
Approvals CE
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Diameter 5.37 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 239.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range -22 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 435 psi / 250 °F
Maximum head 797 ft
Maximum operating pressure 30 bar
Model B
Motor 324TC
Motor standard NEMA
Net weight 221.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 3550 rpm
Pump version K
Rated flow 238 US gpm
Rated head 649.6 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 7
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version K

Motor Curves

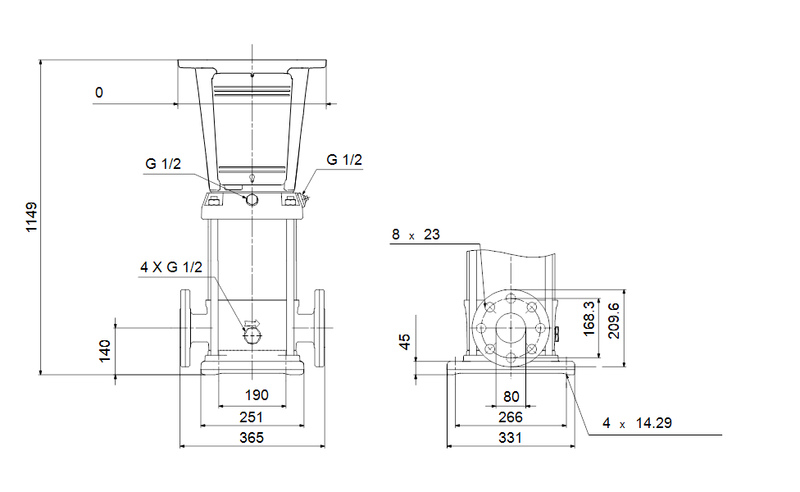

Dimensional Drawing
