Grundfos 97915565 - CR 45-4-2 BK-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 97915565

Price:
Sale price$20,677.78
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97915565 - CR 45-4-2 BK-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97915565 - CR 45-4-2 BK-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and efficient fluid transfer.

With its robust construction and advanced design, the CR 45-4-2 ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is categorized under Service Special, Centrifugal Pumps, and High Pressure, ensuring it meets the diverse needs of various industries.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 97915565. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710626329359
Actual impeller diameter 5.37 in
Approvals CE
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 5.37 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 150 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 200.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range -22 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 232 psi / 250 °F
Maximum head 436.7 ft
Maximum operating pressure 16 bar
Model B
Motor 324TC
Motor standard NEMA
Net weight 182.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3541 rpm
Pump version BK
Rated flow 238 US gpm
Rated head 341.2 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 4
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version BK

Motor Curves

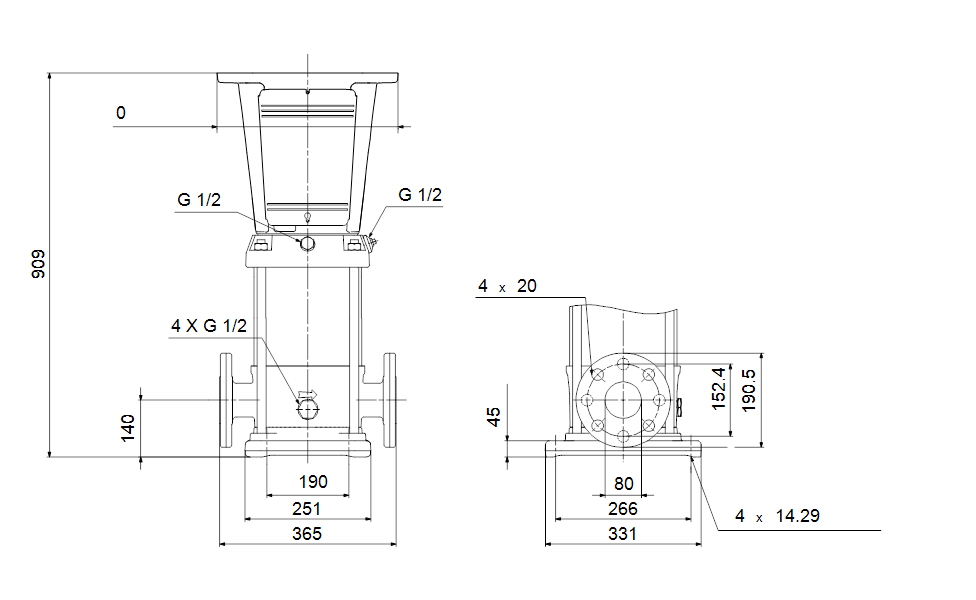

Dimensional Drawing
