Grundfos 92698989 - CR 45-2 K-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92698989

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92698989 - CR 45-2 K-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92698989 - CR 45-2 K-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered for efficiency and reliability, making it an ideal choice for demanding environments.

This pump features a robust construction that ensures durability and long service life, while its multistage design allows for high pressure and flow rates, catering to various operational needs. Whether you require a pump for water supply, irrigation, or industrial processes, the CR 45-2 K-G-A-E-HQQE is built to deliver optimal performance.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to chat with us or give us a call. Let us help you find the perfect solution for your pumping needs!

EAN 5715118322146
Actual impeller diameter 5.37 in
Approvals CE
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 5.37 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 171.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -22 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 246.1 ft
Maximum operating pressure 16 bar
Model B
Motor 254TC
Motor standard NEMA
Net weight 153.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3444 rpm
Pump version K
Rated flow 238 US gpm
Rated head 187.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 2
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version K

Motor Curves

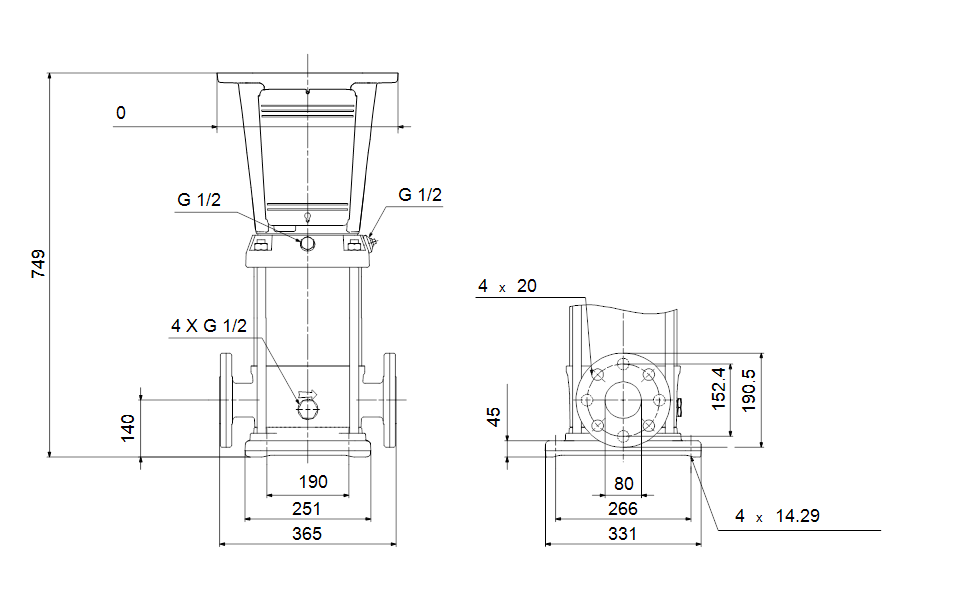

Dimensional Drawing
