Grundfos 98144782 - CR 45-2-2 P-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98144782

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98144782 - CR 45-2-2 P-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98144782 - CR 45-2-2 P-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer, boosting, and circulation tasks.

With its robust construction and advanced design, the CR 45-2-2 P-G-A-E-HQQE ensures optimal flow rates and energy efficiency. This pump is part of the renowned Grundfos CR series, known for its versatility and durability in demanding environments.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5711490431551
Actual impeller diameter 5.34 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 155.0 lb
Impeller Stainless steel
Impellers 2
Liquid temperature range -22 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 196.2 ft
Maximum operating pressure 16 bar
Model B
Motor 213TC
Motor standard NEMA
Net weight 137.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3444 rpm
Pump version P
Rated flow 238 US gpm
Rated head 152.2 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 2
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version P

Motor Curves

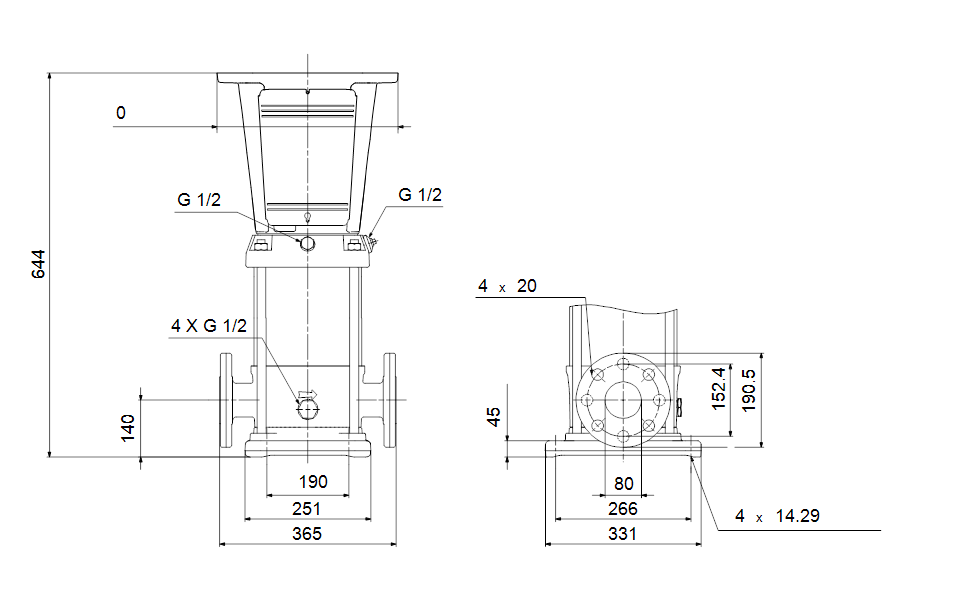

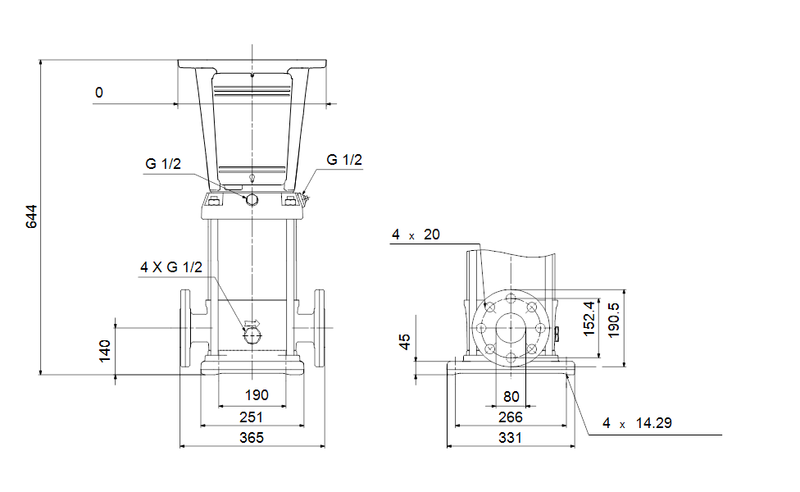

Dimensional Drawing
