Grundfos 99983803 - CR 45-2-1 A-G-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99983803

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99983803 - CR 45-2-1 A-G-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 99983803 - CR 45-2-1 A-G-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and inline pumping needs.

With its robust construction and efficient design, the CR 45-2-1 A-G-A-V-HQQV ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is part of the renowned Grundfos Centrifugal Pumps series, known for their exceptional performance and durability.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715115119732
Actual impeller diameter 5.34 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection PTO
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 333.0 lb
IE efficiency IE3 91%
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 222.5 ft
Maximum operating pressure 16 bar
Model B
Motor 254TC
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type BALDOR
Net weight 315.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3444 rpm
Pump version A
Pumped liquid Water
Rated current 35/17.5 A
Rated flow 238 US gpm
Rated head 169.6 ft
Rated power - P2 11 kW
Rated speed 3520 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 2
Standard NEMA
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version A

Motor Curves

Dimensional Drawing

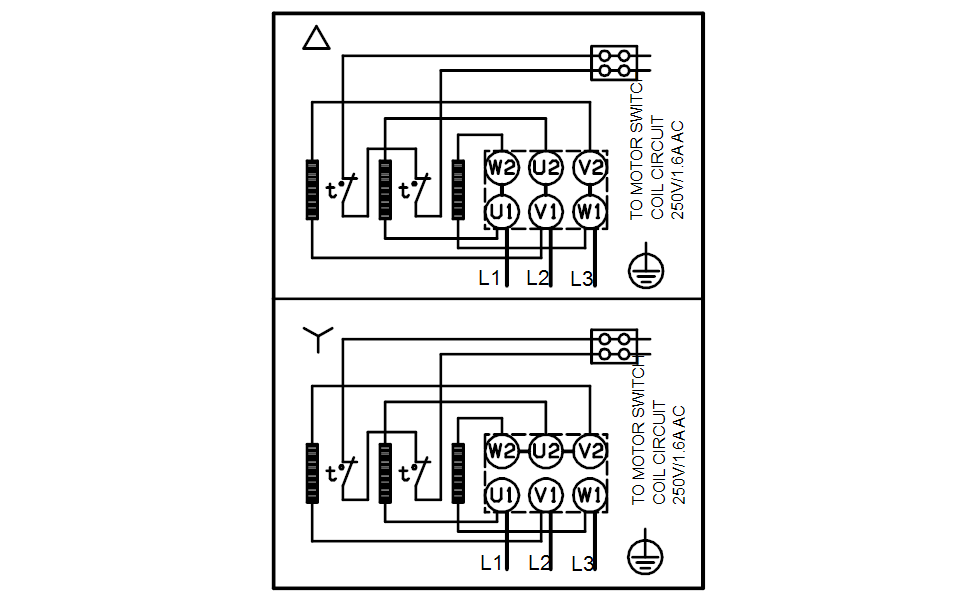

DWiring Diagram
