Grundfos 98074989 - CR 45-2-1 FK-G-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98074989

Price:
Sale price$27,884.72
or Call for most up to date lead times. (781) 281-8905

Description

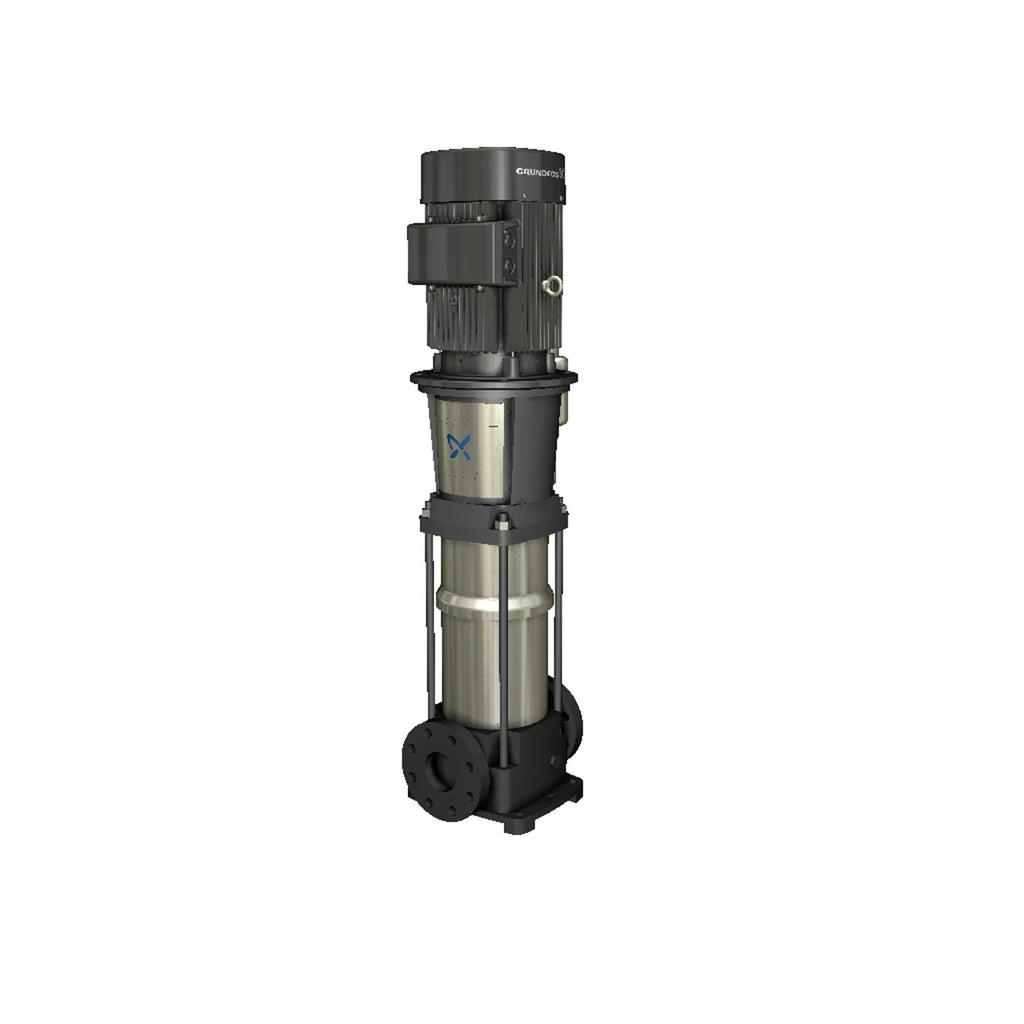

Grundfos 98074989 - CR 45-2-1 FK-G-A-F-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98074989 - CR 45-2-1 FK-G-A-F-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and inline pumping needs.

With its robust construction and efficient design, the CR 45-2-1 FK-G-A-F-HQQE ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is part of the renowned Grundfos Centrifugal Pumps series, known for their exceptional performance and durability.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710628510892
Actual impeller diameter 5.37 in
Approvals CE
Bearing 1 Graflon
Code for rubber F
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Diameter 5.37 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 219.0 lb
Impeller Stainless steel
Impellers 1
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 356 °F
Maximum head 222.5 ft
Maximum operating pressure 25 bar
Model B
Motor 254TC
Motor standard NEMA
Net weight 201.0 lb
Number of reduced-diameter impellers 1
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 3444 rpm
Pump version FK
Rated flow 238 US gpm
Rated head 169.6 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 2
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version FK

Motor Curves

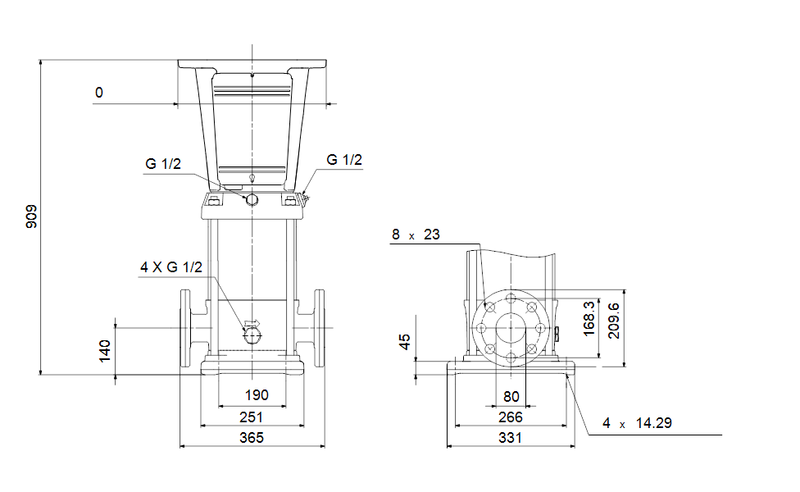

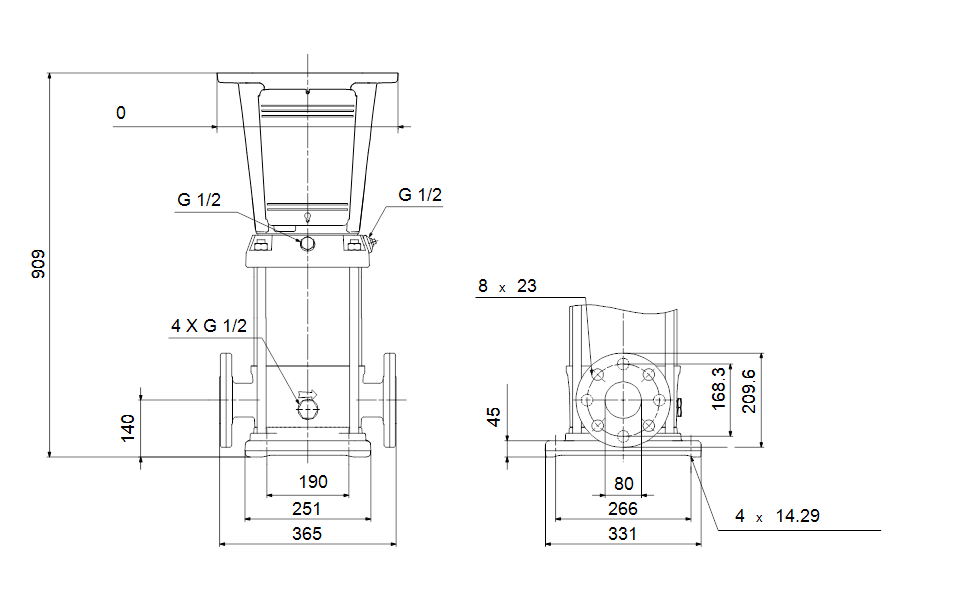

Dimensional Drawing
