Grundfos 92837452 - CR 45-1 E-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92837452

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92837452 - CR 45-1 E-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92837452 - CR 45-1 E-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model is engineered to deliver reliable and efficient performance in demanding environments.

With its robust construction and advanced design, the CR 45-1 E-G-A-E-HQQE is ideal for high-pressure applications, ensuring optimal fluid transfer and circulation. This pump is part of the renowned Grundfos CR series, known for its versatility and durability.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715120315976
Actual impeller diameter 5.34 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Diameter 5.34 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 147.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -22 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum head 126.6 ft
Maximum operating pressure 16 bar
Model B
Motor 213TC
Motor standard NEMA
Net weight 129.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump speed on which pump data are based 3467 rpm
Pump version E
Rated flow 238 US gpm
Rated head 92.2 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 1
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version E

Motor Curves

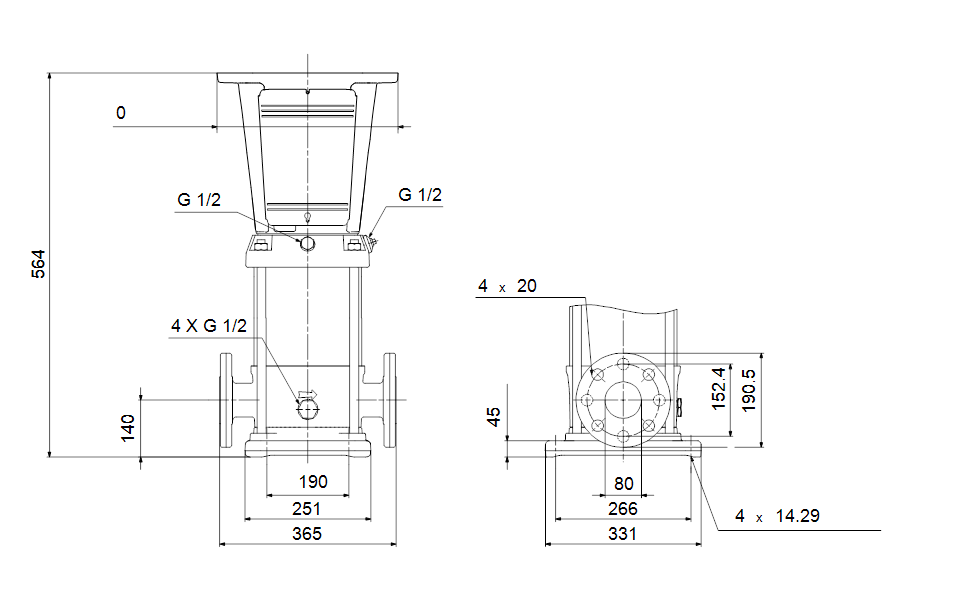

Dimensional Drawing
