Grundfos 92622596 - CR 32-9-2 FK-G-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92622596

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92622596 - CR 32-9-2 FK-G-A-F-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92622596 - CR 32-9-2 FK-G-A-F-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Known for its reliability and efficiency, this pump is ideal for high-pressure water supply, irrigation, and other demanding tasks.

Manufactured by Grundfos, a leader in pump technology, the CR 32-9-2 model features a robust construction that ensures durability and long service life. Its multistage design allows for increased pressure capabilities, making it suitable for applications where consistent performance is crucial.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715117217412
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 793.0 lb
IE efficiency IE3 92
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 104 °F
Maximum head 796.6 ft
Maximum operating pressure 25 bar
Model B
Motor 324TC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.924
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type WEG
Net weight 775.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 30 kW
Power factor 1 0.88
Pressure rating for connection PN 40
Pressure sensor N
Pump 30 kW
Pump speed on which pump data are based 3525 rpm
Pump version FK
Pumped liquid Water
Rated current 92.6/46.3 A
Rated flow 159 US gpm
Rated head 629.3 ft
Rated power - P2 30 kW
Rated speed 3560 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 9
Standard NEMA
Starting current 6.3
Support bearing Graflon
Type WEG
Type of connection ANSI
Version FK

Motor Curves

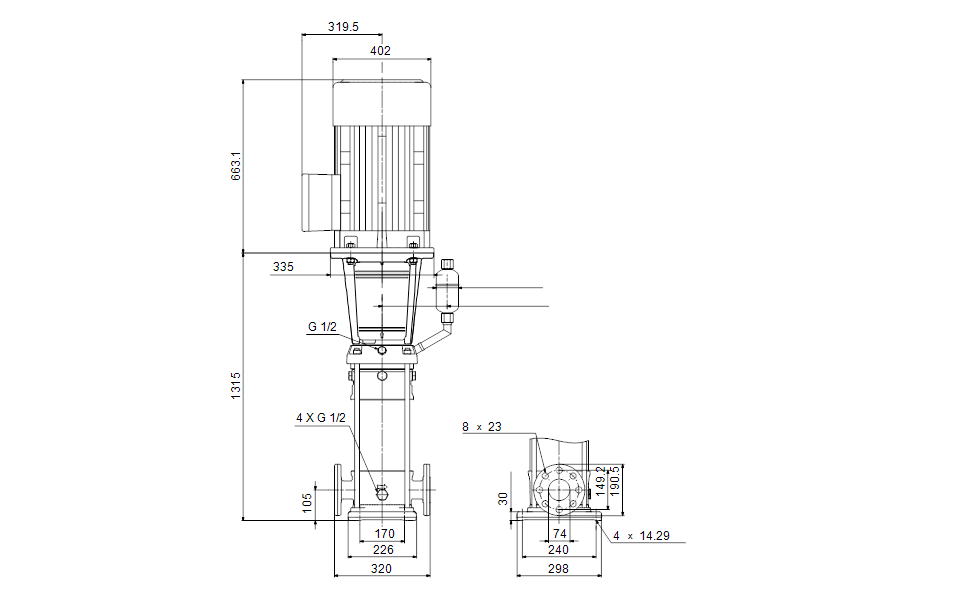

Dimensional Drawing

DWiring Diagram
