Grundfos 98052754 - CR 32-8 P-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98052754

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98052754 - CR 32-8 P-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

With its robust construction and advanced design, the CR 32-8 P-G-A-E-HQQE model is ideal for high-pressure applications, ensuring optimal fluid transfer and circulation. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Single & Multi-Stage and Vertical Multistage types, making it a versatile choice for various operational needs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 98052754 to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710628157592
Actual impeller diameter 4.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 572.0 lb
IE efficiency IE3 91%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 435 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 742.5 ft
Maximum operating pressure 30 bar
Model B
Motor 284TC
Motor efficiency at full load 1 91-91.7 %
Motor standard NEMA
Motor type BALDOR
Net weight 554.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 22 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 22 kW
Pump speed on which pump data are based 3541 rpm
Pump version P
Pumped liquid Water
Rated current 66/33 A
Rated flow 159 US gpm
Rated head 587.6 ft
Rated power - P2 22 kW
Rated speed 3520 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 8
Standard NEMA
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version P

Motor Curves

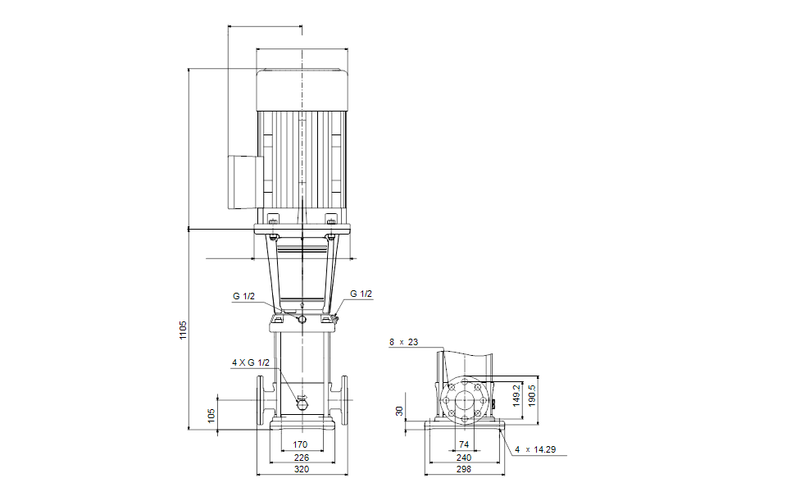

Dimensional Drawing

DWiring Diagram
