Grundfos 97679800 - CR 32-8-2 H-G60-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $7,005.93
GRUNDFOSSKU: 97679800

Price:
Sale price$9,363.07 Regular price$16,369.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97679800 - CR 32-8-2 H-G60-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features advanced design elements that ensure optimal performance and durability. With its multistage configuration, the CR 32-8-2 provides high pressure and flow rates, making it suitable for both residential and commercial use. The pump is tagged under various categories including Cr H, Cr H Crn H Cre H Crne H, and CRN-CRT- CR FPV, ensuring compatibility with a wide range of systems.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, and feel free to call us if you encounter any difficulties in locating the right item.

Explore our extensive selection of Grundfos centrifugal pumps, including single and multi-stage options, and discover the perfect solution for your needs.

Approvals on nameplate CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G60
Connection PN 40
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 366.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 668.7 ft
Maximum operating pressure 435.11 psi
Model B
Motor 284TC
Motor standard NEMA
n rpm 3541rpm
Net weight 206.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 40
Pressure sensor N
Pump Y
Pump version H
Rated flow 136 US gpm
Rated head 540.7 ft
Rubber V
Sales region USA
Shaft Product name:CR 32-8-2 H-G60-A-V-HQQV
Shaft seal HQQV
Stages 8
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

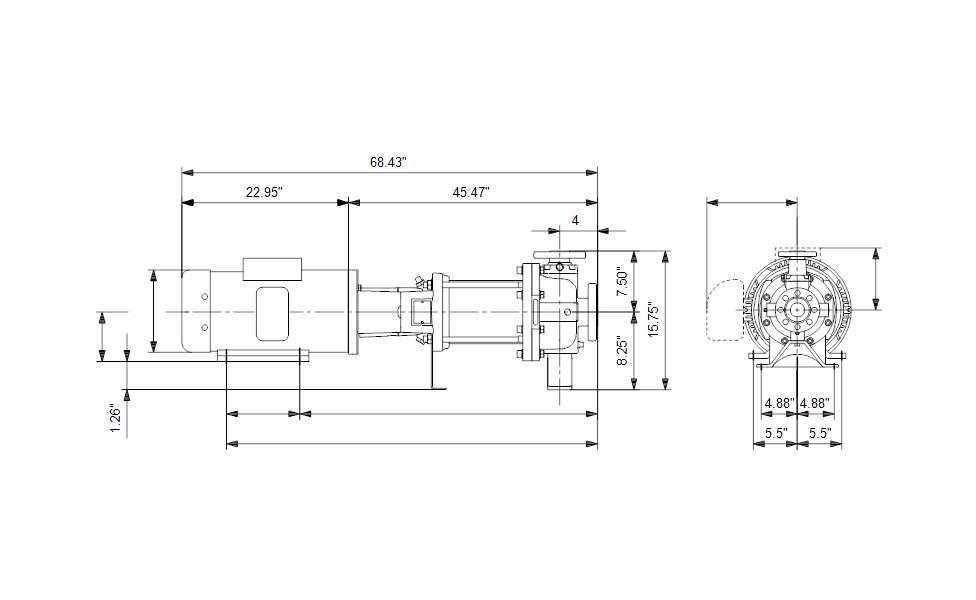

Dimensional Drawing
