Description

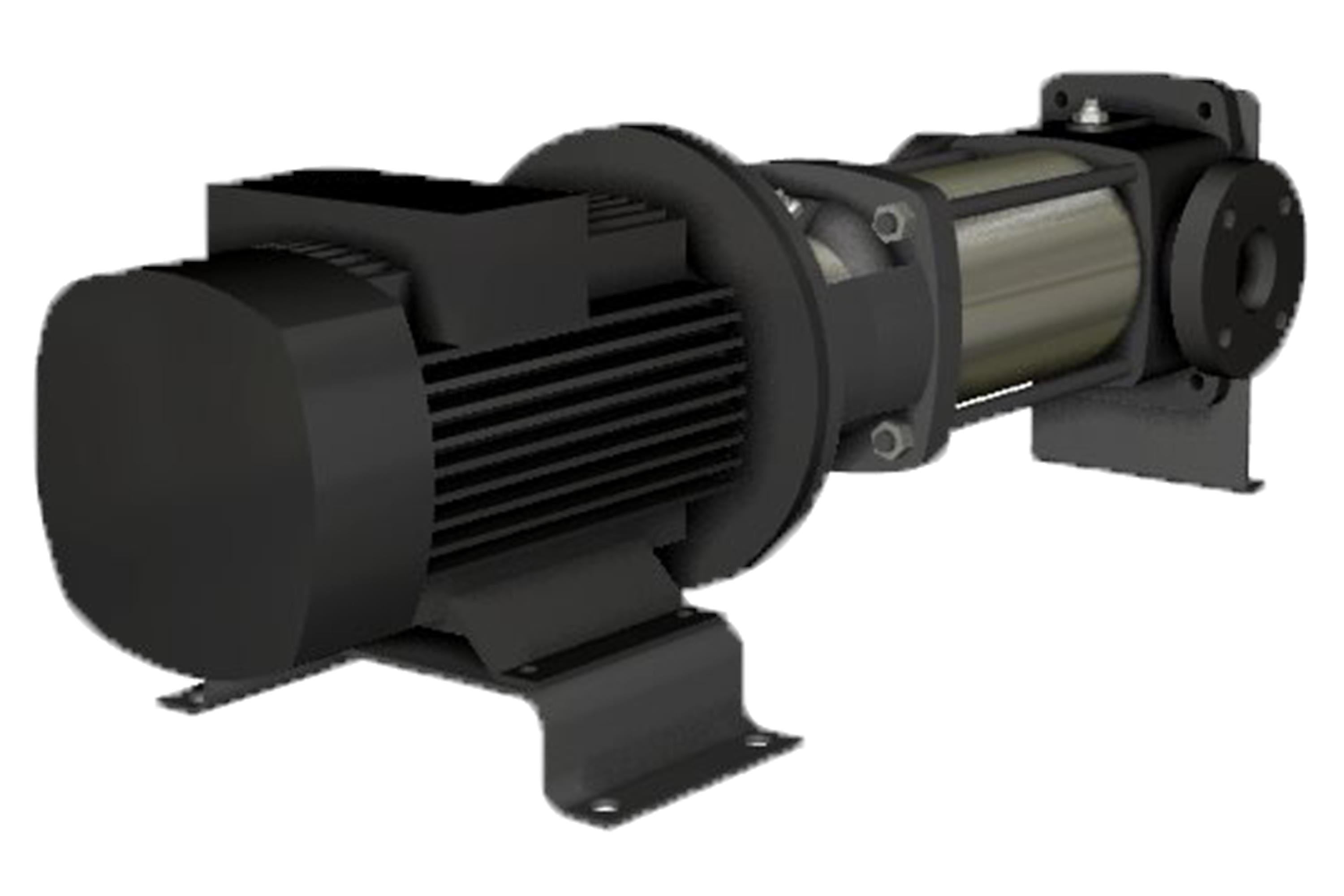

Grundfos 99812558 - CR 32-7 H-G-A-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713834637780
Material Pricing Group
6
Code for rubber
E
Material code
A
Max pressure at stated temp
435 psi / 250 °F
Maximum operating pressure
30 bar
Size of inlet connection
2 1/2 inch
Support bearing
Graflon
Type of connection
ANSI
Bearing 1
Graflon
Flange size for motor
284TC
Size of outlet connection
2 1/2 inch
Connect code
G
Liquid temperature range
-22 .. 248 °F
Net weight
264.0 lb
Gross weight
282.0 lb
Pressure rating for connection
PN 40
Frequency converter
NONE
Pressure sensor
N
Pump speed on which pump data are based
3541 rpm
Stages
7
Approvals
CE
Rated flow
159 US gpm
Model
B
Version
H
Motor
284TC
Rubber
E
Maximum head
645.7 ft
Approvals for drinking water
NSF/ANSI 61
Motor standard
NEMA
Rated head
504.6 ft
Curve tolerance
ISO9906:2012 3B
Impellers
0
Connection
PN 40
Impeller
Stainless steel
Code for shaft seal
HQQE
Number of reduced-diameter impellers
0
Flange rating inlet
300 lb
Low NPSH
N
Standard
NEMA
Pump version
H
