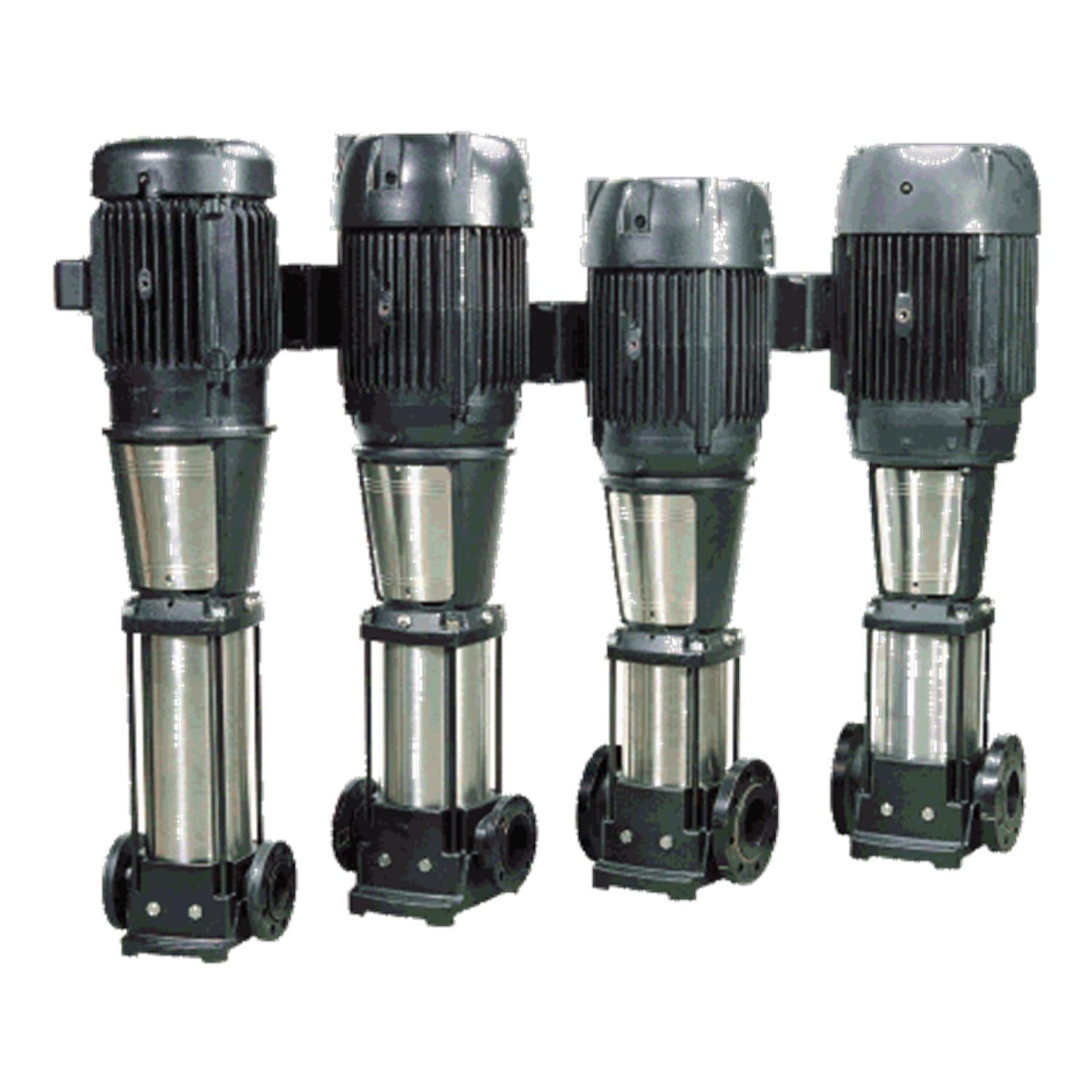

Grundfos 99968328 - CR 32-6 K-G-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $9,112.12
GRUNDFOSSKU: 99968328

Price:
Sale price$12,177.88 Regular price$21,290.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Introducing the Grundfos 99968328 - CR 32-6 K-G-A-E-HQQE, a reliable vertical multistage centrifugal pump designed for various industrial applications. Manufactured by Grundfos, this pump is engineered to deliver high performance and efficiency.

Key Features:

  • Vertical multistage design
  • High pressure capabilities
  • Suitable for low NPSH applications

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have any questions or need assistance, please don't hesitate to reach out to our team at (781) 281-8905.

When purchasing, please ensure you match the exact model or SKU (99968328). If you are unsure, feel free to call us for guidance.

EAN 5715114889254
Applications Industrial applications
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection ANSI
Connection 2 PN 40
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.917
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 84.5/42.3 A
Gross weight 584.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 91,7%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 6
Insulation F
Insulation class (IEC 85) F
Liquid max temp 120°C
Liquid temperature range -22 .. 248 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 435 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 553.5 ft
Maximum operating pressure 435.11 psi
Maximum permissible operating pressure 30bar
Model B
Motor 284TC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.917
Motor efficiency at full load 1 0.917
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3540rpm
Net weight 567.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 30 HP
P2 kW 22kW
Phase 3
Power (P2) required by pump 30 HP
Power factor 1 0.89
Pressure rating PN 40
Pressure rating for connection PN 40
Product family CR 32
Pump 30 HP
Pump housing Cast iron
Pump inlet 2.5
Pump outlet 2.5
Pump version K
Pumped liquid Water
Rated current 67.6/33.8 A
Rated flow 159 US gpm
Rated flow 2 159 US gpm
Rated head 429.5 ft
Rated head 2 429.5 ft
Rated power - P2 30 HP
Rated speed 3540 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Shaft seal HQQE
Stages 6
Standard NEMA
Starting current 6.3
Support bearing Graflon
Type WEG
Type of connection ANSI
Version K

Motor Curves

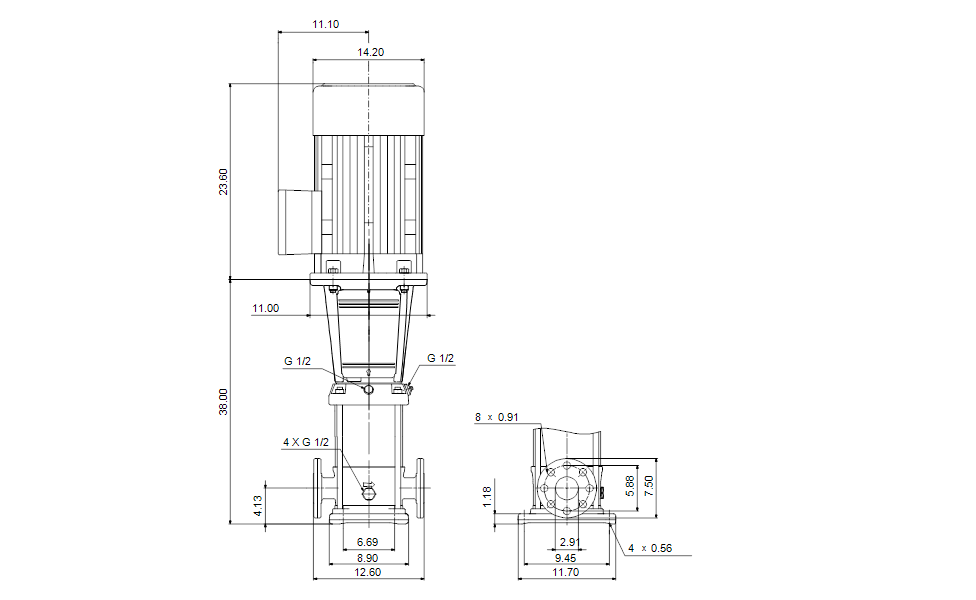

Dimensional Drawing

DWiring Diagram
