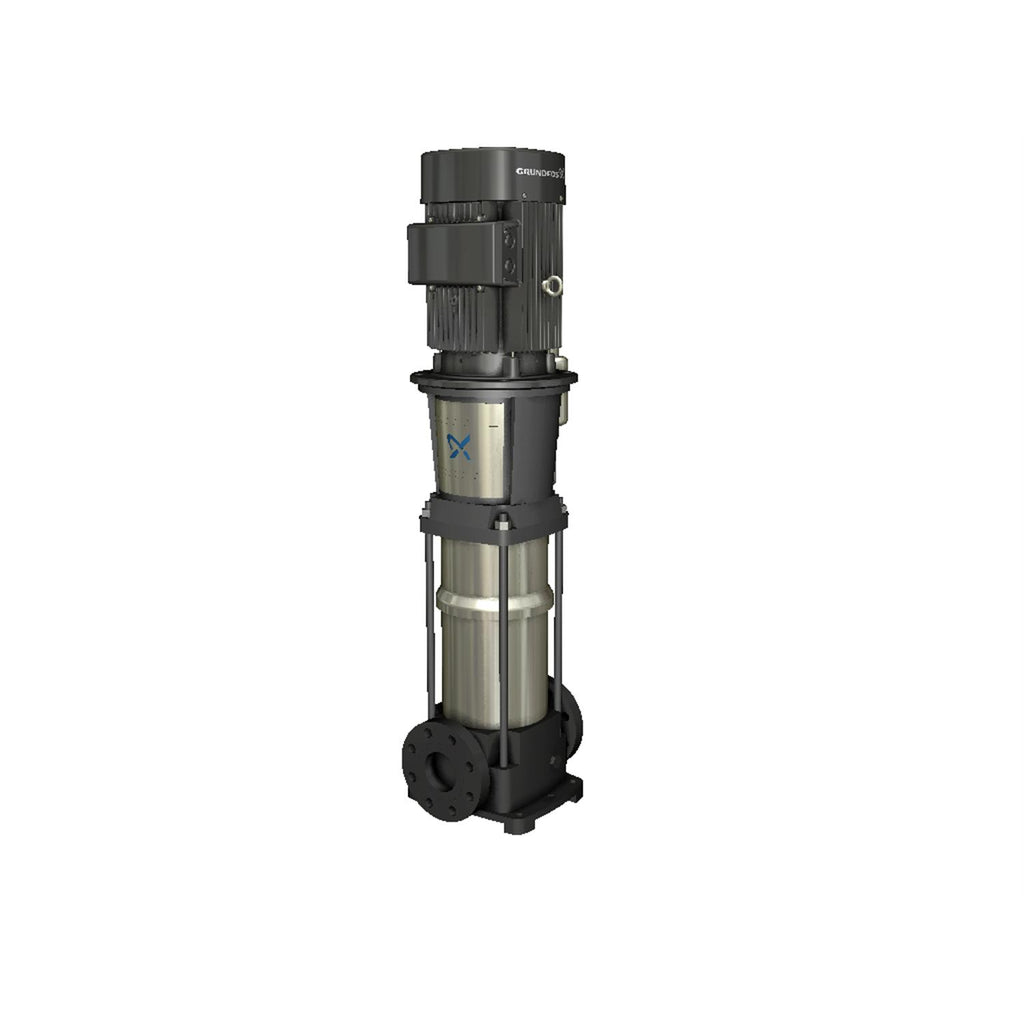

Grundfos 99517756 - CR 32-6 FK-G-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99517756

Price:
Sale price$35,277.78
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99517756 - CR 32-6 FK-G-A-F-HQQE is a vertical multistage centrifugal pump designed for industrial and commercial fluid handling. Technicians and service teams use this model where compact, high-pressure in-line pumping is required.

Key features

  • Engineered for industrial applications with multistage centrifugal design
  • Vertical, in-line configuration suitable for high-pressure service
  • Provides reliable, efficient pumping for process, transfer, and boost applications

Applications

Typical uses include process water transfer, boiler feed, high-pressure boosting, and industrial fluid circulation in commercial and manufacturing settings.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99517756

EAN 5713830389546
Actual impeller diameter 4.66 in
Approvals CE
Bearing 1 Graflon
Code for rubber F
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 212.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 356 °F
Maximum head 553.5 ft
Maximum operating pressure 25 bar
Model B
Motor 284TC
Motor standard NEMA
Net weight 194.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 40
Pressure sensor N
Pump speed on which pump data are based 3521 rpm
Pump version FK
Rated flow 159 US gpm
Rated head 429.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 6
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version FK
