Grundfos 98133369 - CR 32-6-2 FK-G-A-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98133369

Price:
Sale price$42,891.67
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

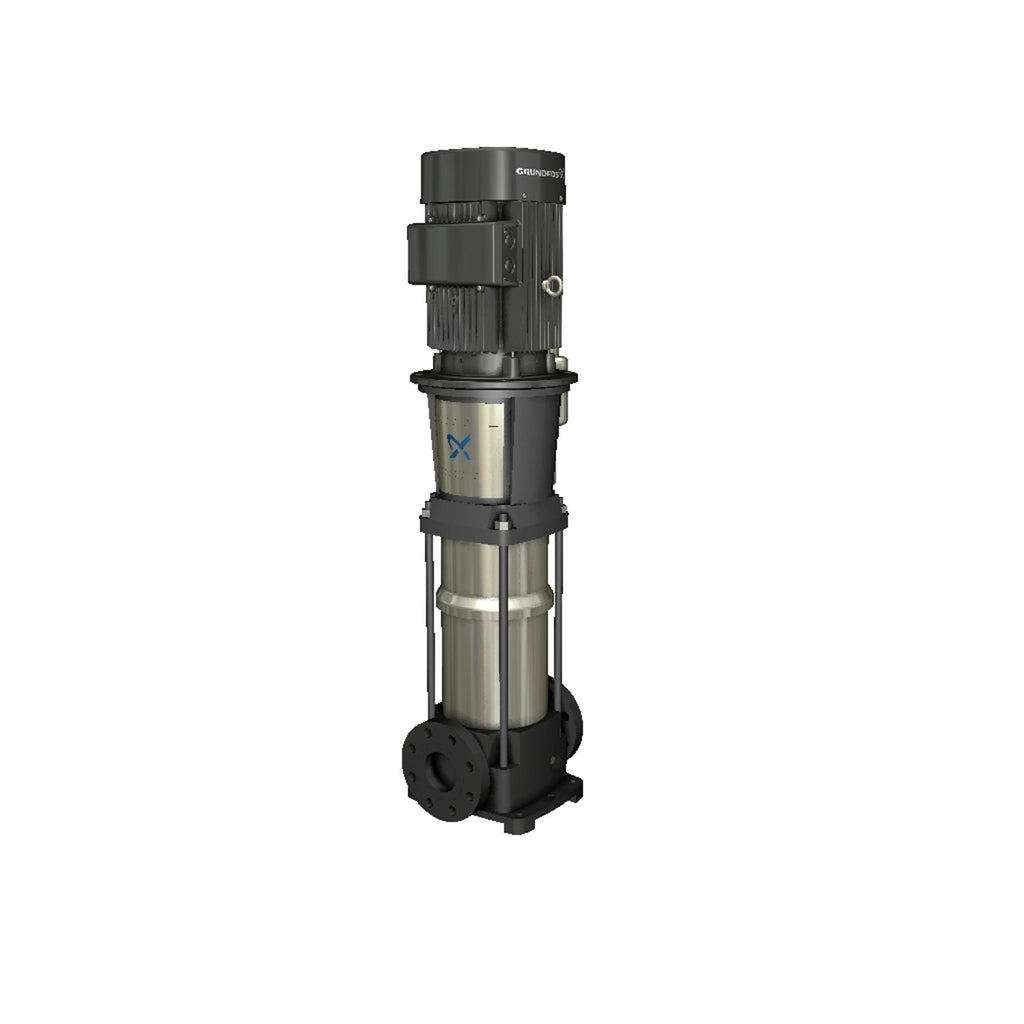

Grundfos 98133369 - CR 32-6-2 FK-G-A-F-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98133369 - CR 32-6-2 FK-G-A-F-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Known for its reliability and efficiency, this pump is ideal for high-pressure water supply, irrigation, and other demanding tasks.

Manufactured by Grundfos, a leader in pump technology, the CR 32-6-2 model features a robust construction that ensures durability and long service life. Its multistage design allows for increased pressure capabilities, making it suitable for applications where consistent performance is crucial.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5711490220575
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber F
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP54
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 540.0 lb
IE efficiency IE3 93%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 104 °F
Maximum head 517.1 ft
Maximum operating pressure 25 bar
Model B
Motor 284TC
Motor efficiency at full load 1 0.93
Motor standard NEMA
Motor type BALDOR
Net weight 523.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 18.5 kW
Pressure rating for connection PN 40
Pressure sensor N
Pump 18.5 kW
Pump speed on which pump data are based 3521 rpm
Pump version FK
Pumped liquid Water
Rated current 56/28 A
Rated flow 159 US gpm
Rated head 400.3 ft
Rated power - P2 18.5 kW
Rated speed 3530 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 6
Standard NEMA
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version FK

Motor Curves

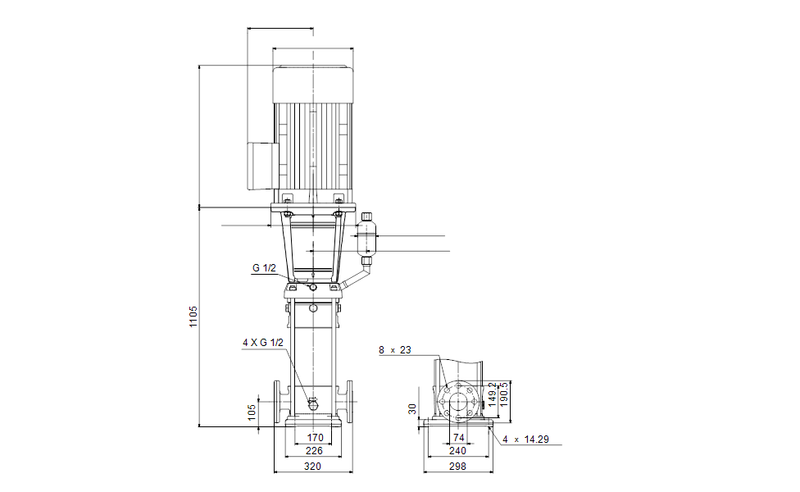

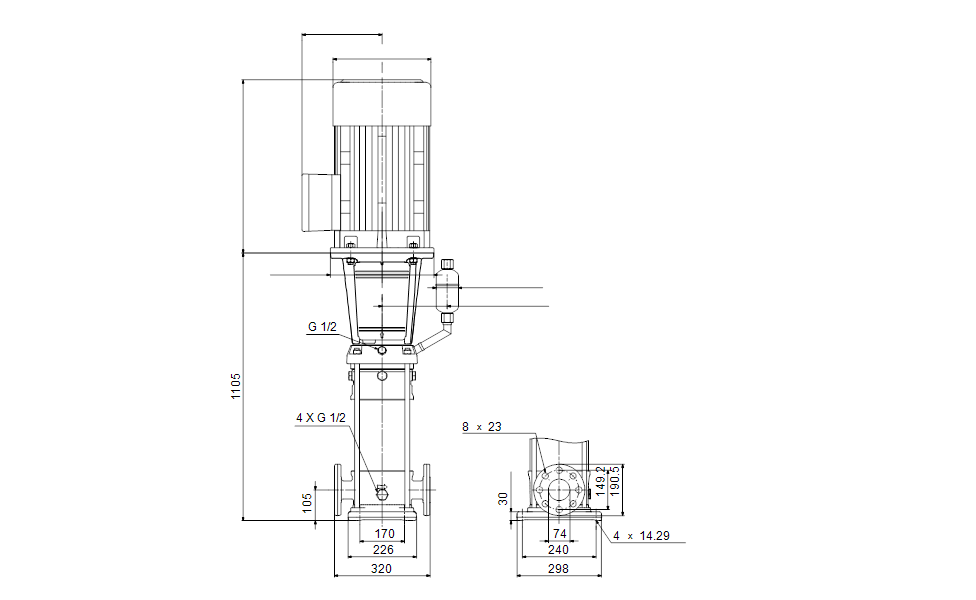

Dimensional Drawing

DWiring Diagram
