Grundfos 99997845 - CR 32-5 A-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99997845

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99997845 - CR 32-5 A-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 99997845 - CR 32-5 A-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CR 32-5 A-G-A-E-HQQE ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, and it is suitable for both clean and slightly contaminated liquids.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble finding the right item, our team is here to help you navigate your options.

EAN 5715115314427
Actual impeller diameter 4.66 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP54
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 454.0 lb
IE efficiency IE3 92
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 462.9 ft
Maximum operating pressure 16 bar
Model B
Motor 254TC
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type BALDOR
Net weight 436.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Pressure rating for connection PN 16
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 3497 rpm
Pump version A
Pumped liquid Water
Rated current 48-44/22 A
Rated flow 159 US gpm
Rated head 360.9 ft
Rated power - P2 15 kW
Rated speed 3540 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 3 inch
Size of outlet connection 3 inch
Stages 5
Standard NEMA
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version A

Motor Curves

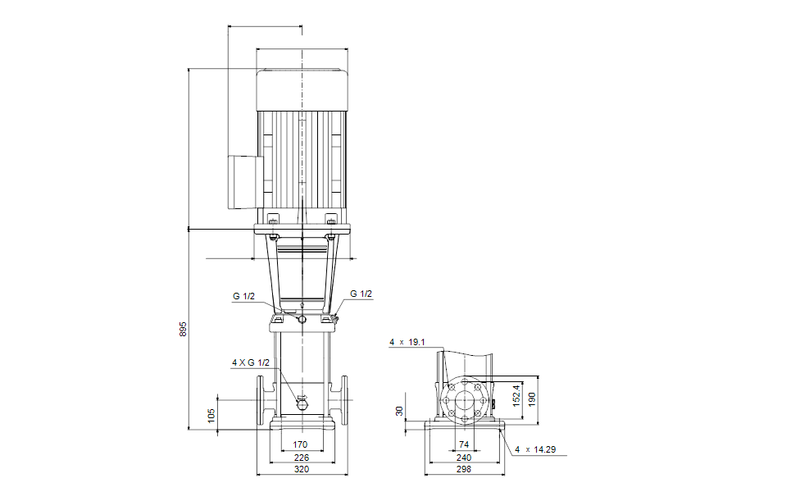

Dimensional Drawing

DWiring Diagram
