Grundfos 92737769 - CR 32-5 B-J-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92737769

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92737769 - CR 32-5 B-J-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 92737769 - CR 32-5 B-J-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CR 32-5 B-J-A-V-HQQV ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, such as in HVAC systems, water treatment, and industrial processes.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble locating the right item, our team is here to help!

EAN 5715118897170
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code J
Connection DN 65
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 284TC
Frequency converter NONE
Gross weight 391.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 462.9 ft
Maximum operating pressure 16 bar
Model B
Motor 284TC
Motor efficiency at 1/2 load 93.0-92.5 %
Motor efficiency at 3/4 load 91.5-92.5 %
Motor efficiency at full load 1 91.0-91.7 %
Motor standard NEMA
Motor type 160AC
Net weight 373.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 18.5 kW
Power factor 1 0.92-0.91
Pressure sensor N
Pump 18.5 kW
Pump speed on which pump data are based 3497 rpm
Pump version B
Pumped liquid Water
Rated current 62
Rated flow 159 US gpm
Rated head 360.9 ft
Rated power - P2 18.5 kW
Rated speed 3490-3530 rpm
Rated voltage 3 x 208-230DD/460D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 5
Standard NEMA
Starting current 550-750 %
Support bearing Graflon
Type 160AC
Type of connection JIS
Version B

Motor Curves

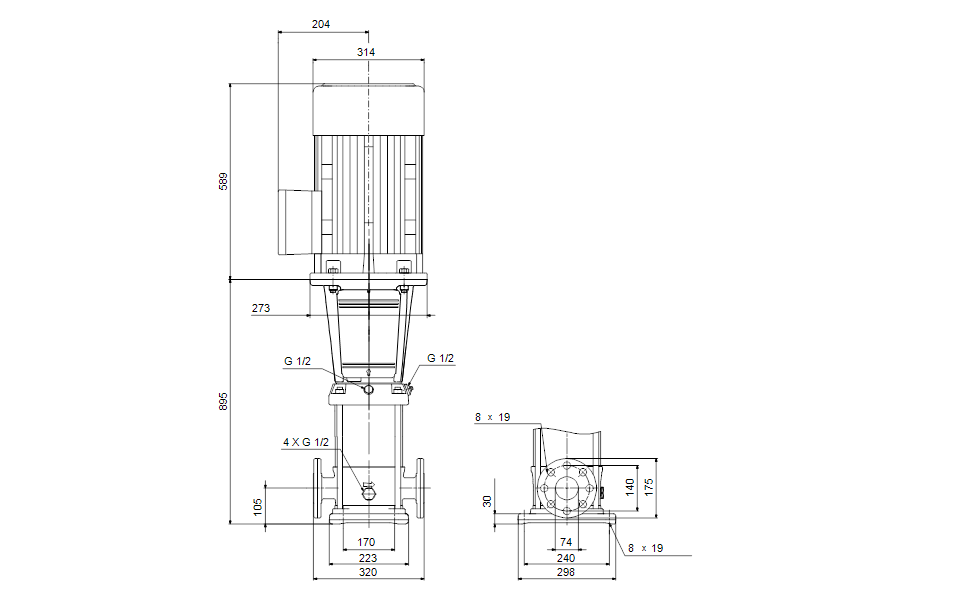

Dimensional Drawing

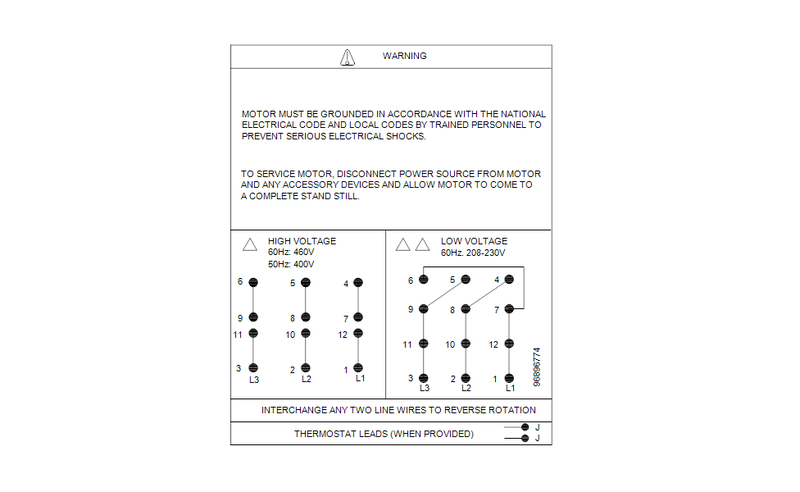

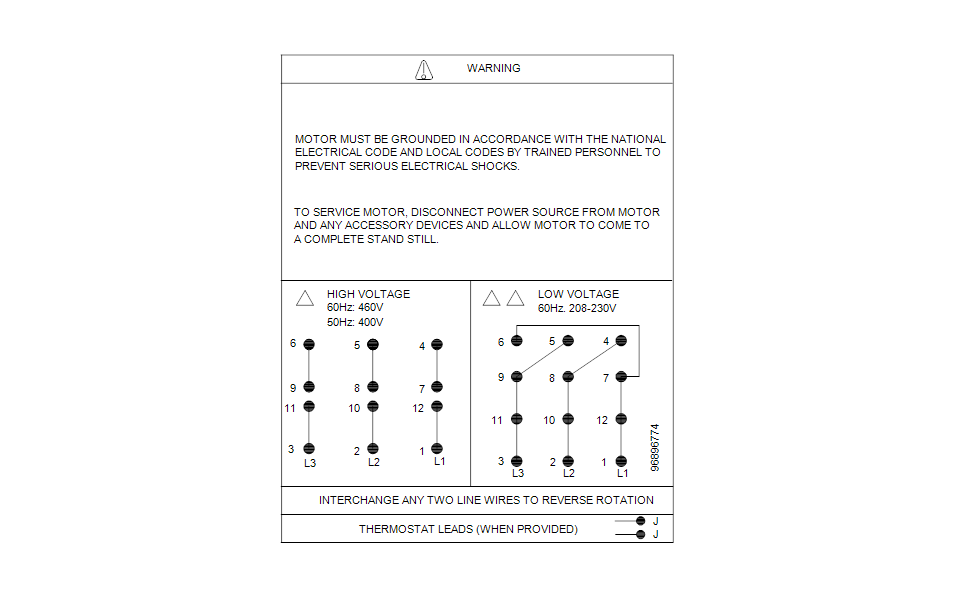

DWiring Diagram
