Grundfos 97667867 - CR 32-4 H-GB-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $4,344.63
GRUNDFOSSKU: 97667867

Price:
Sale price$5,806.37 Regular price$10,151.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97667867 - CR 32-4 H-GB-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance and longevity. It is part of the CR series, known for its versatility and adaptability in various settings. The CR 32-4 H-GB-A-E-HQQE is specifically tagged under Cr H, Cr H Crn H Cre H Crne H, and is suitable for horizontal installations, excluding models 95 through 255.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97667867. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code GB
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 271.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Material code A
Maximum head 359.6 ft
Maximum operating pressure 232.06 psi
Model B
Motor 254TC
Motor standard NEMA
n rpm 3444rpm
Net weight 172.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 136 US gpm
Rated head 299.2 ft
Rubber E
Sales region USA
Shaft Product name:CR 32-4 H-GB-A-E-HQQE
Shaft seal HQQE
Stages 4
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

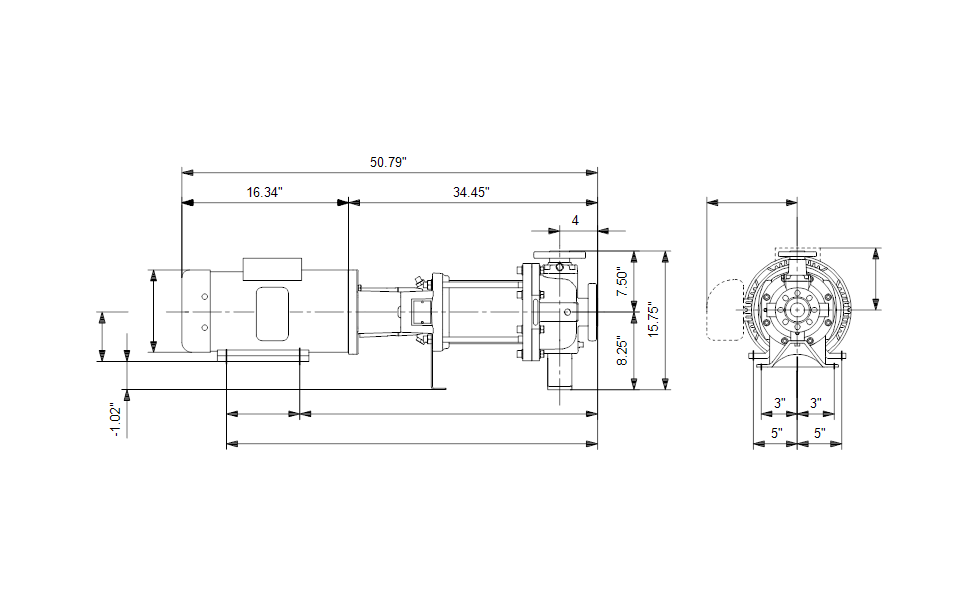

Dimensional Drawing
