Grundfos 99952470 - CR 32-3 A-F-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99952470

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99952470 - CR 32-3 A-F-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 99952470 - CR 32-3 A-F-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and inline pumping needs.

With its robust construction and efficient design, the CR 32-3 A-F-A-E-HQQE ensures reliable operation and longevity, making it a perfect choice for demanding environments. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Service Special and High Pressure types.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715114637992
Actual impeller diameter 4.66 in
Approvals EAC
Approvals for drinking water WRAS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code F
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF265
Frequency converter NONE
Gross weight 264.0 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 191.9 ft
Maximum operating pressure 16 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor FF265
Motor efficiency at 1/2 load 89.6-88.4 %
Motor efficiency at 3/4 load 90.0-89.8 %
Motor efficiency at full load 1 89.2-89.2 %
Motor standard IEC
Motor type 132DA
Net weight 214.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.87-0.82
Pressure rating for connection PN 40
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 2919 rpm
Pump version A
Pumped liquid Water
Rated current 19.0/11.0 A
Rated flow 132 US gpm
Rated head 144.7 ft
Rated power - P2 5.5 kW
Rated speed 2920-2940 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 65
Size of outlet connection DN 65
Stages 3
Standard IEC
Starting current 1080-1180 %
Support bearing Graflon
Type 132DA
Type of connection DIN
Version A

Motor Curves

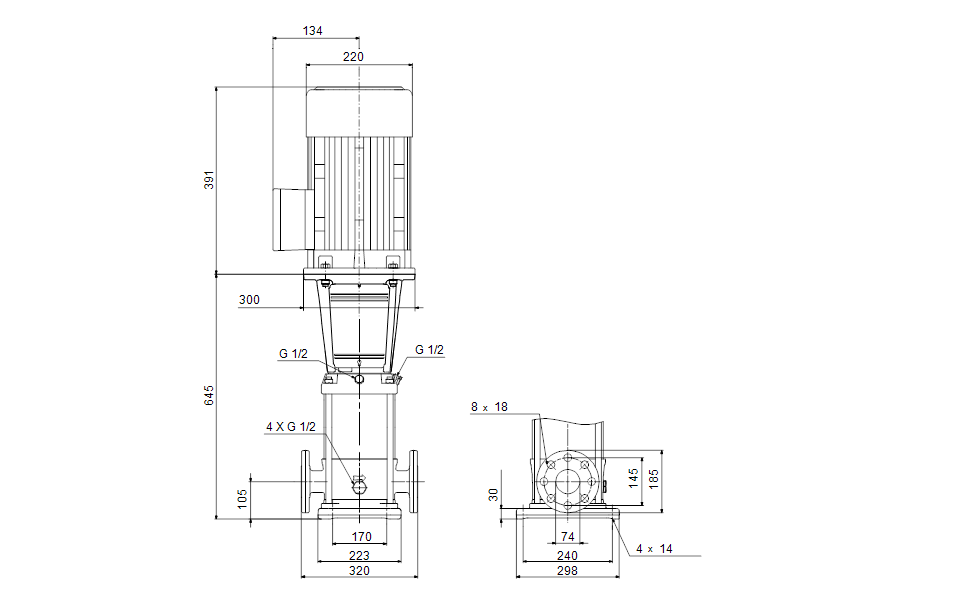

Dimensional Drawing

DWiring Diagram
