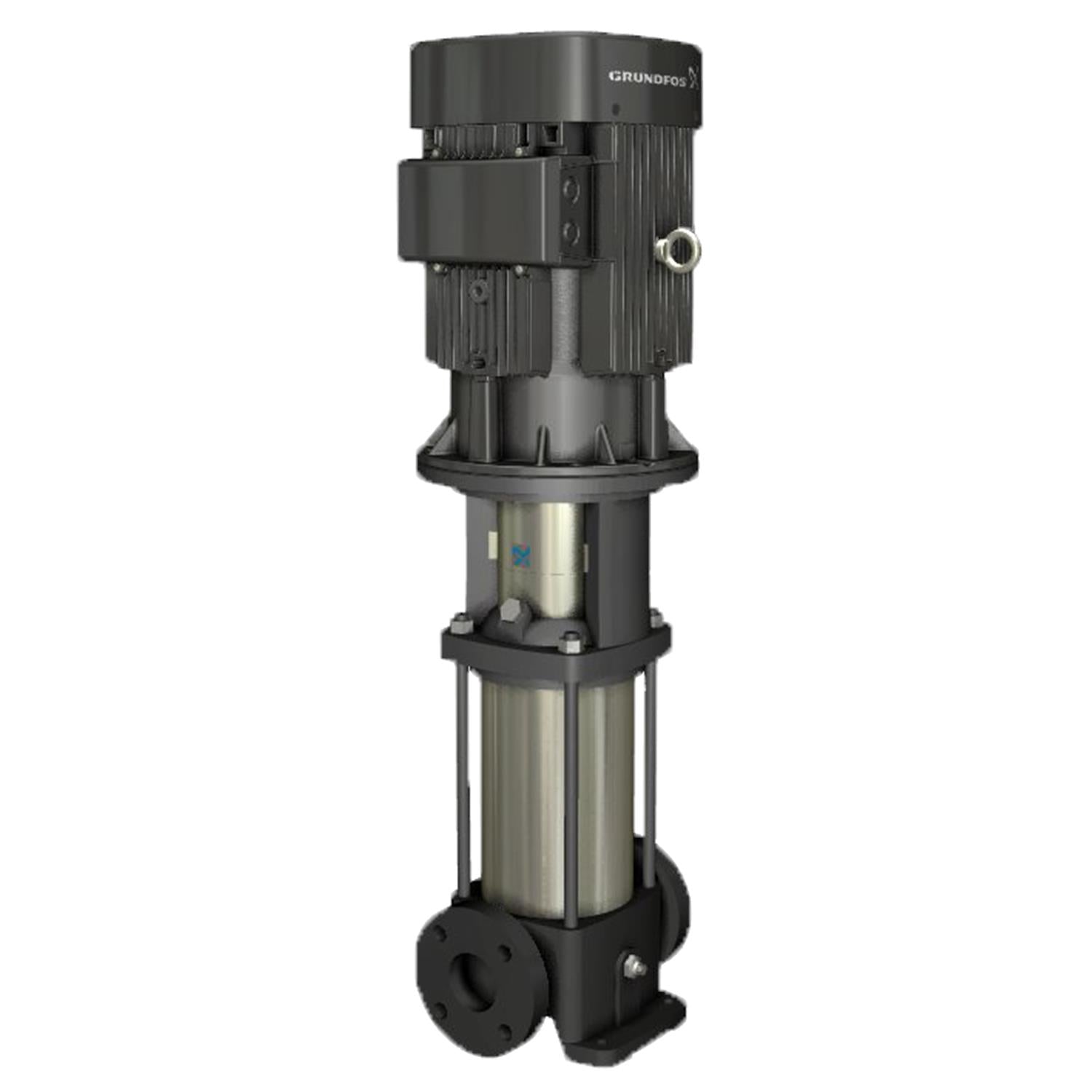

Grundfos 99819973 - CR 32-3-2 B-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 99819973

Price:
Sale price$15,573.61
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
Grundfos 99819973 - CR 32-3-2 B-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline · Genuine Grundfos Part
CR SeriesGenuine Grundfos PartSpare Part / Accessory

The Grundfos 99819973 is a genuine Grundfos spare part, repair kit, or accessory compatible with the CR series (Inline multi stage pumps). Confirm compatibility with your specific pump model before ordering.

Genuine Grundfos
OEM part — engineered and tested to Grundfos specifications
Authorized Distributor
Full manufacturer warranty and traceability on all genuine parts
Compatibility
Verify part number against your pump model and serial number before ordering
Expert Support
Parts identification help available — call (781) 281-8905 or chat
Compatible Pump Series — CR
Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron — all wetted parts in stainless steel. Used in water supply, pressure boosting, industrial liquid transfer, and HVAC applications.
Inline multi stage pumps
Part Details
Part Number 99819973
Compatible Series Grundfos CR
Product Category Inline multi stage pumps
Part Type Genuine Grundfos OEM spare part / accessory
Important Notices
Compatibility Always verify this part number against your pump model number and serial number before ordering. Grundfos CR pumps are available in multiple configurations — not all parts are interchangeable between variants.
Genuine parts only Using non-genuine parts can affect pump performance, invalidate warranty, and cause premature failure. PumpStop supplies genuine Grundfos OEM parts only.
Installation Refer to the Grundfos Service Manual for your specific pump model for correct installation and torque specifications. Contact PumpStop for documentation.
Documentation
✓ Service Manual — CR Series
✓ Spare Parts List — CR Series
✓ Installation and Operating Manual (IOM)
Need the service manual or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm this part number is correct for your specific pump model and serial number. For parts identification assistance, chat or call (781) 281-8905.
EAN 5713834743375
Actual impeller diameter 4.66 in
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection PN 40
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.66 in
DOE Pump Energy Index CL 0.87
Enclosure class (IEC 34-5) IP54
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 401.0 lb
IE efficiency IE3 91%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 241.5 ft
Maximum operating pressure 16 bar
Model B
Motor 254TC
Motor efficiency at 1/2 load 91-91 %
Motor efficiency at 3/4 load 91.6-91.6 %
Motor efficiency at full load 1 0.91
Motor standard NEMA
Motor type BALDOR
Net weight 384.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 11 kW
Power factor 1 0.87
Pressure rating for connection PN 40
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 3470 rpm
Pump version B
Pumped liquid Water
Rated current 38
Rated flow 159 US gpm
Rated head 180.1 ft
Rated power - P2 11 kW
Rated speed 3520 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 1/2 inch
Size of outlet connection 2 1/2 inch
Stages 3
Standard NEMA
Starting current 6.8
Support bearing Graflon
Type BALDOR
Type of connection ANSI
Version B
