Grundfos 99835051 - CR 32-2 HKP-G05-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99835051

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CR 32-2 HKP-G05-A-E-HQQE | The pump head and base are in cast iron – all other wetted parts are in stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via G05 ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713834944765
Approvals CURUS
Bearing 1 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code G05
Connection PN 16
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 431.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH Y
Mains frequency 60 Hz
Material code A
Material Pricing Group 3L
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 179.8 ft
Maximum operating pressure 16 bar
Model B
Motor 213TC
Motor efficiency at 1/2 load 91.4-89.7 %
Motor efficiency at 3/4 load 90.9-90.7 %
Motor efficiency at full load 1 90.0-90.2 %
Motor standard NEMA
Motor type 132FA
Net weight 270.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.87
Pressure rating for connection PN 16
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version HKP
Pumped liquid Water
Rated current 26
Rated flow 123 US gpm
Rated head 141.7 ft
Rated power - P2 7.5 kW
Rated speed 3480-3500 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 2 inch
Size of outlet connection 1 inch
Stages 2
Standard NEMA
Starting current 680-900 %
Support bearing Graflon
Type 132FA
Type of connection G05
Version HKP

Motor Curves

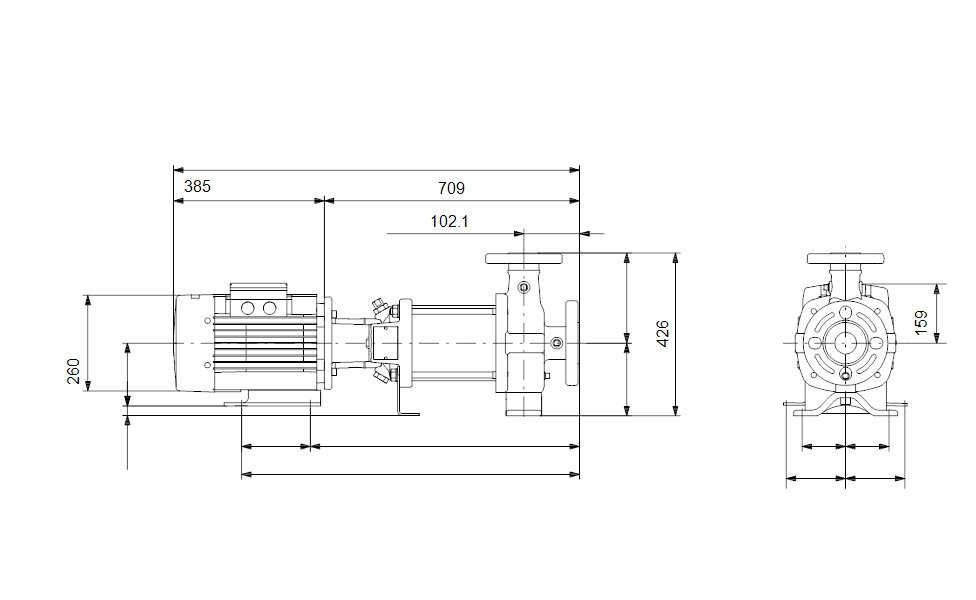

Dimensional Drawing

DWiring Diagram
